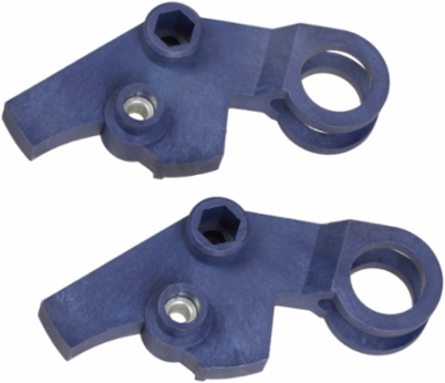

Schneider Electric LA9FG970 TeSys F Mechanical Interlock for 2 Horizontal Contactors
- MPN: LA9FG970
- PPN: SCH-LA9FG970
CAD
$59.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys F mechanical interlock kit, for assembling pairs of contactors LC1 F185, F225 and CR1 F185. To be used in horizontal assembling of 3-pole and 4-pole identical contactors, for reversing and changeover applications. It conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France, United Kingdom |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1505009EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2542 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | interlock |
| Energy Efficiency Optimized | False |
| Mounting Position | 2 horizontal |
| Product Or Component Type | mechanical interlock |
| Range Of Product | TeSys F |
| Sustainable Packaging | Yes |
| Accessory / Separate Part Category | interlocking accessory |
| Package Weight(Lbs) | 109.0 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Local Publishable Date | 2026-07-01 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 3 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA9F |
| Interlocking Type | mechanical |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range | TeSys |
| Returnability | Yes |
| Pep Code | ENVPEP1505009EN |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1505009EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Product Compatibility | LC1F, CR1F |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Circularity Profile | ENVEOLI1505009EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1505009EN |
General Attributes
| Product Or Component Type | mechanical interlock |
|---|
| Range Of Product | TeSys F |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|
| ETIM 9 | EC002498 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
