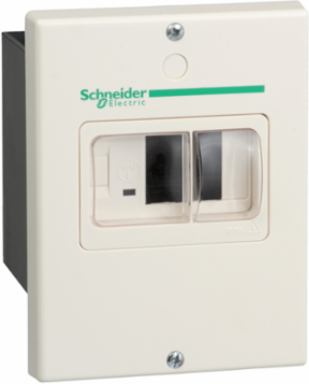

Schneider Electric GV2MP02 TeSys Flush Mounting Enclosure, IP55, 140 mm Height, 106.5 mm Width, Polycarbonate
- MPN: GV2MP02
- PPN: SCH-GV2MP02
CAD
$32.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Flush mounting enclosure, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection front face. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom, Indonesia, Philippines
Depth83 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Auxiliary Mounting Location
- right, left
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1258766698354385, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.00469767590264559, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 95 kg CO2 eq., 95.1464883670669
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- GV2MP
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- TeSys
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Protection 44
- IP55
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- When a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functions
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 232.14
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 106.5 mm
- Enclosure/Cubicle Description
- flush mounting
- Package Weight(Lbs)
- 231.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyUKCA, CE
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.450926256908761
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.374240146139641
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2107010
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2538
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2MP
Environmental Characteristicstandard environment
Product Or Component Typeenclosure
Range Of ProductTeSys GV2
Software Versionv6.1
Total Lifecycle Carbon Footprint107 kg CO2 eq.
Enclosure Descriptionflush mounting
Pep CodeENVPEP2107010EN
Pep Verification Date2024-08-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2040; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal140 mm
Accessory / Separate Part Categorymounting accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 107.10222911585338
- Environmental Disclosure
- ENVPEP2107010EN
- Ip Degree Of Protection
- IP55 front face
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2107010EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2107010
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityGV2ME
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-08-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductTeSys GV2
ETIM
- ETIM 8
- EC000712
ETIM 9EC000712
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
