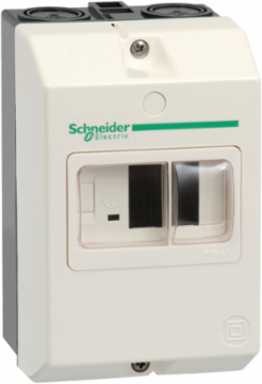

Schneider Electric GV2MC03 TeSys Enclosure for GV2ME, IP55, Surface Mount, -5 C, 147 mm Height
- MPN: GV2MC03
- PPN: SCH-GV2MC03
CAD
$129.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys enclosed starters, empty enclosure for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection, for environment temperature less than 5°C. To be equipped with a motor circuit breaker GV2ME, and start-emergency stop buttons GV2K (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, United States
Depth84 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Auxiliary Mounting Location
- right, left
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 2 kg CO2 eq., 2.450926256908761
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 9 kg CO2 eq., 9.374240146139641
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2107010
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2538
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GV2MC
- Environmental Characteristic
- standard environment
- Product Or Component Type
- enclosure
- Range Of Product
- TeSys GV2
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 107 kg CO2 eq.
- Pep Code
- ENVPEP2107010EN
- Pep Verification Date
- 2024-08-02
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2037; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Height Nominal
- 147 mm
- Certificate Agency
- UKCA
- Enclosure/Cubicle Description
- surface mounting
- Package Weight(Lbs)
- 295.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.1258766698354385, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.00469767590264559, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]95 kg CO2 eq., 95.1464883670669
Local Publishable Date2025-07-09
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGV2MC
Product AvailabilityStock - Normally stocked in distribution facility
RangeTeSys
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functions
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh232.14
Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
Width Nominal93 mm
Accessory / Separate Part Categorymounting accessory
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 107.10222911585338
- Environmental Disclosure
- ENVPEP2107010EN
- Ip Degree Of Protection
- IP55 5 °C
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2107010EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2107010
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product CompatibilityGV2ME
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-08-02
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- enclosure
Range Of ProductTeSys GV2
ETIM
- ETIM 8
- EC000712
ETIM 9EC000712
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
