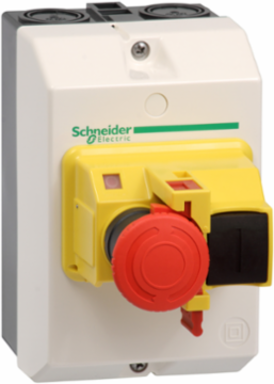

Schneider Electric GV2MCK04 TeSys Enclosure with Emergency Stop, IP55, 147mm Height, 93mm Width
- MPN: GV2MCK04
- PPN: SCH-GV2MCK04
CAD
$347.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys enclosed starters, empty enclosure, for thermal magnetic circuit breakers GV2ME. Surface mounting enclosure with screw fixing, 2 knock-outs for cable glands on top and bottom, sealable cover. Polycarbonate enclosure, double insulated with protective conductor, IP55 protection. Already fitted with a mushroom head emergency stop pushbutton GV2K04 , it must be equipped with a motor circuit breaker GV2ME (to be ordered separately). Possible mounting of 1 side auxiliary contact blocks GVAD, GVAM, GVAD on both sides of GV2ME (to be ordered separately). It conforms to IEC 60947-2 and IEC 60947-4-1, Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
| Accessory / Separate Part Category | mounting accessory |
|---|---|
| Enclosure/Cubicle Description | surface mounting |
| Provided Equipment | mushroom head emergency stop push-button |
| Device Short Name | GV2MC |
| Product Or Component Type | enclosure |
|---|---|
| Range | TeSys |
| Product Compatibility | GV2ME |
Complementary
| Height | 147 mm |
|---|---|
| Width | 93 mm |
| Auxiliary Mounting Location | right || left |
| Net Weight | 0.3 kg |
|---|---|
| Depth | 145.5 mm |
Environment
| Product Certifications | UKCA |
|---|---|
| Environmental Characteristic | standard environment |
| Ip Degree Of Protection | IP55 |
|---|
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111273EN |
| Toxic Heavy Metal Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | N/A |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Compliant |
