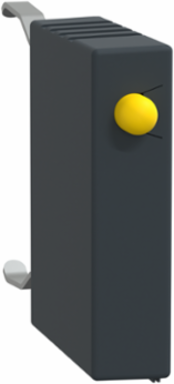

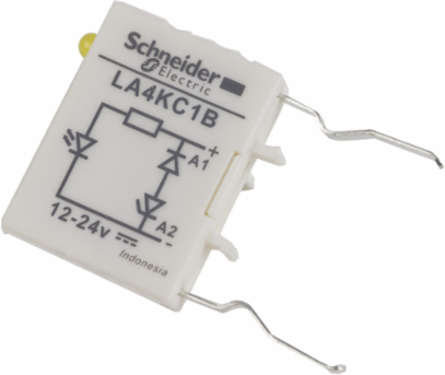

Schneider Electric LA4KC1B TeSys K Suppressor Module, 12-24V DC, Bidirectional Diode, 5 Units
- MPN: LA4KC1B
- PPN: SCH-LA4KC1B
- UNSPSC: 39121529
CAD
$19.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
TeSys K suppressor module, for contactors LP.K, CA3K, CA4K. To be used with 12-24V DC control circuits, it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on mounting on front of contactor (no tools required, polarised component), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.
Features
- Meet the need for coil protection for TeSys K contactor
- Suppressor module
- Front side mounting by click-on
- Replacable
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Indonesia, Singapore |
|---|---|
| Depth | 22 mm |
| Weight | 10 g |
|---|
Complementary Attributes
| Maximum Peak Voltage | 2 Uc |
|---|
| Uc Control Circuit Voltage | 12...24 V DC |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Protective Treatment | TCIEC 60068, TCDIN 50016 |
| Carbon Footprint Of The Distribution Phase A4 | 0.0011846655791190863, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.1 kg CO2 eq., 0.09012234910277324 |
| Local Publishable Date | 2026-06-28 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | LA4K |
| Mounting Location | front side |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 5 |
| Range Of Product | TeSys K |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Control Circuit Voltage 4 | 12...24 V DC |
| Data Source | extrapolated product |
| Width Nominal | 6 mm |
| Customs Code | 8536308000 |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | UL, CSA, CE, UKCA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0 kg CO2 eq., 0.02998123980424143 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Traceability | No |
| Service Catalog Item | Finished good |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Compatibility Code | LA4K |
| Local Signalling | LED |
| Mounting Mode | clip-on |
| Product Or Component Type | suppressor module |
| Range | TeSys |
| Returnability | Yes |
| Suppressor Technology | bidirectional peak limiting diode |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Pop Directive | No POPs |
| Database Version | 2022-01 |
| Height Nominal | 26 mm |
| Nbr. Of Units In Pkg. | 1 |
| Oecd Pfas Regulation | No OECD PFAS Chemicals Present |
| Functional Unit Description | It provides a flywheel diode protection ensuring no transient overvoltage. Clip-on side mounting, overall size of the contactor is unchanged. |
| Functional Unit Unit | unit |
| Recyclability Potential In % | 20 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Ambient Air Temperature For Storage | -50-80 °C, -50-80 °C |
| Reach Regulation | Free of Substances of Very High Concern above the threshold, Reference contains Substances of Very High Concern above the threshold |
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.12128825448613376 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -25-50 °C, -25-50 °C |
|---|---|
| Product Compatibility | LP1K, LP4K, CA3K |
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1112053EN |
| Ip Degree Of Protection | IP2XIEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1112053EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | suppressor module |
|---|
| Range Of Product | TeSys K |
|---|
ETIM
| ETIM 8 | EC000683 |
|---|---|
| ETIM 10 | EC000683 |
| ETIM 9 | EC000683 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
