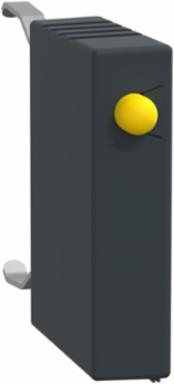

Schneider Electric LA4KC1E TeSys K, Suppressor module, bidirectional peak limiting diode, 32...48V

TeSys K, Suppressor module, bidirectional peak limiting diode, 32...48V
  • MPN: LA4KC1E
  • PPN: SCH-LA4KC1E

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$19.32/ EA

Description

TeSys K suppressor module, for contactors LP.K, CA3K, CA4K. To be used with 32-48V DC control circuit , it provides a flywheel diode protection ensuring no transient overvoltage. Clip-on mounting on front of contactor (no tools required), it incorporates a power-on LED indicator. Sold in lots of 5 units. It conforms to RoHS/REACh regulation.

Specifications

Environment

Product Certifications
UL || CSA || CE || UKCA
Standards
UL 60947-5-1 || CSA C22.2 No 60947-5-1 || EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-50-80 °C
Ambient Air Temperature For Operation-25-50 °C
Ip Degree Of ProtectionIP2XIEC 60529
Protective TreatmentTCIEC 60068 || TCDIN 50016

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Sustainable Offer Status
Green Premium product
Reach Free Of Svhc
Yes
China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs Directive
Compliant
Environmental DisclosureENVPEP111253EN
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A

Complementary

[Uc] Control Circuit Voltage
32...48 V DC
Net Weight
0.01 kg
Maximum Peak Voltage
2 Uc
Local Signalling
LED
Width
6 mm
Suppressor Technology
bidirectional peak limiting diode
Height26 mm
Mounting Locationfront side
Mounting Modeclip-on
Quantity Per Setset of 5
Depth22 mm

Specifications

Product Or Component Type
suppressor module
Product Compatibility
LP1K || LP4K || CA3K
RangeTeSys
Device Short NameLA4K
