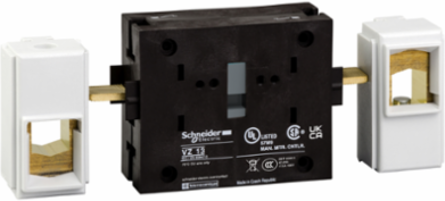

Schneider Electric VZ13 TeSys Neutral Block, 175A, 690V, Compatible with V5/V6 Switches

MPN: VZ13
PPN: SCH-VZ13

$54.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

VZ13 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 125A to 175A 690V, to be used with V5 and V6 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, Czechia, France, United States

Depth	63 mm

Important Information Attributes

Persona Type Ids	EU, LC, OM, OM8, PB
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Electrical Durability	30000 cycles DC-1...5, 30000 cycles AC-21
Network Type	AC, DC
Carbon Footprint Of The Distribution Phase [A4]	0.007846013513513512, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.02661486486486486, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	0.5 kg CO2 eq., 0.4993700000000001
Local Publishable Date	2026-06-27
Stocking Flag	Y
Device Type	LV equipment - LV fuse - switch
Traceability	No
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	1936
China Rohs In Scope	No
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Contact Operation	early make, late break
Device Short Name	VZ
Mechanical Durability	30000 cycles
Network Frequency	50/60 Hz
Performance Level	high performance
Product Or Component Type	additional neutral block
Range	TeSys
Software Version	v5.9.4
Tightening Torque	22.6-22.6 N.m screw clamp terminals
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2022-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
Functional-unit Unit	unit
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]	Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %	35
Width Nominal	30 mm
[Ue] Rated Operational Voltage	690 V AC 50/60 Hz
Connections - Terminals	screw clamp terminals 70-70 mm² flexible - with cable endscrew clamp terminals 95-95 mm² solid
Package Weight(Lbs)	256.000 g
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market Segmentation	Commercial, Industrial
Mounting Location	left, right
Certificate Agency	UL, CSA, GL, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.1 kg CO2 eq., 0.13483783783783782
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.3 kg CO2 eq., 0.341402027027027
Local Data Status	Publishable
Return Indicator	N
Stock Policy	2
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Compatibility Code	neutral pole module
Contacts Type And Composition	1 NO
Fire Resistance	960 °C IEC 60695-2-1
Mechanical Robustness	vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
Number Of Poles	1N
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	No
Sustainable Packaging	No
Total Lifecycle Carbon Footprint	1 kg CO2 eq.
Pep Code	ENVPEP2211001EN
Pep Verification Date	2025-06-18
Psr Version	PSR-0005-ed2-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]	Electricity Mix; Production mix; Low voltage; FR
Height Nominal	125 mm
[Ith] Conventional Free Air Thermal Current	175 A
[Uimp] Rated Impulse Withstand Voltage	6 kV
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536904000

Environment Attributes Main

China Rohs Regulation	Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Product Compatibility	V5, V6
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	1.0100707432432432
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-18
Psr Version	PSR-0005-ed2-2016 03 29

Ambient Air Temperature For Operation	-20-50 °C, -20-50 °C
Take Back	No
Mercury Free	Yes
Environmental Disclosure	ENVPEP2211001EN
Ip Degree Of Protection	IP20 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2211001EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
