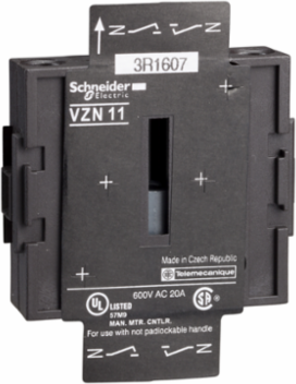

Schneider Electric VZN11 Additional Neutral Block, 12 mm Width, 20 A, IP20, For VN12/VN20
- MPN: VZN11
- PPN: SCH-VZN11
CAD
$16.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. VZN11 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. It is rated 12A to 20A 690V, compatible with switch types VN12 and VN20. It behaves as an "early make" and "late break" contact. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC). Add-on neutral pole module for Vario switch disconnector assemblies. Rated 12A to 20A 690VAC to be used with VN12 and VN20 switch bodies. Other add-on modules available for VN12 and VN20 switch bodies , main poles (VZN12 and VZN20), earthing (VZN14), auxiliary contacts (VZN05, VZN06).
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, France |
|---|

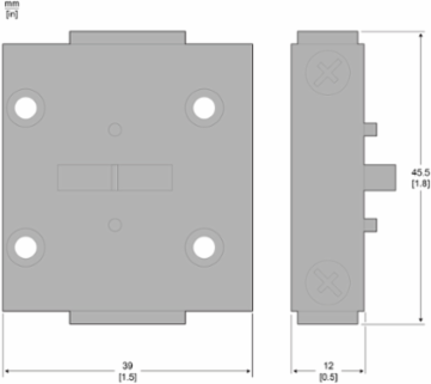

| Depth | 39 mm |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM, OM8, PB |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Network Type | AC, DC |
| Connections - Terminals | screw clamp terminals 4-4 mm² flexible - with cable end, screw clamp terminals 4-4 mm² solid |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.04924551102448407 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.1 kg CO2 eq., 0.12319508762000031 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Compatibility Code | neutral pole module |
| Contacts Type And Composition | 1 NO |
| Electrical Durability | 30000 cycles DC-1...550000 cycles AC-21 |
| Mechanical Durability | 50000 cycles |
| Mounting Location | right |
| Number Of Poles | 1N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protective Treatment | TC |
| Returnability | No |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 5 kg CO2 eq. |
| Pep Code | ENVPEP2211017EN |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; CZ |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; FR |
| Recyclability Potential In % | 42 |
| Width Nominal | 12 mm |
| [Ithe] Conventional Enclosed Thermal Current | 16 A |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV |
| Package Weight(Lbs) | 22.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Certificate Agency | CSA, GL, UL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0023619537223242225, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.006060703945746572, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 5 kg CO2 eq., 4.986699999999999 |
| Local Publishable Date | 2026-06-27 |
| Stocking Flag | Y |
| Device Type | LV equipment - LV fuse - switch |
| Traceability | No |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1936 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Contact Operation | early make, late break |
| Device Short Name | VZN |
| Fire Resistance | 960 °C IEC 60695-2-1 |
| Mechanical Robustness | vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27 |
| Network Frequency | 50/60 Hz |
| Performance Level | standard |
| Product Or Component Type | additional neutral block |
| Range | TeSys |
| Software Version | v5.9.4 |
| Tightening Torque | 0.7-0.7 N.m screw clamp terminals |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 20A ensuring isolation characterized by rated voltage 6KV. This function is provided for 20 years. |
| Functional-unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 74.6352 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | 45.5 mm |
| [Ith] Conventional Free Air Thermal Current | 20 A |
| [Ue] Rated Operational Voltage | 690 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Product Compatibility | VN12, VN20 |
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 5.167563256312554 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Operation | -20-50 °C, -20-50 °C |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2211017EN |
| Ip Degree Of Protection | IP20 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2211017EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | additional neutral block |
|---|
ETIM
| ETIM 8 | EC000041 |
|---|
| ETIM 9 | EC000041 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
