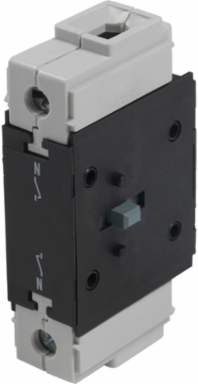

Schneider Electric VZ12 Additional Neutral Block 80A for TeSys Vario, 1 NO, 690V AC
- MPN: VZ12
- PPN: SCH-VZ12
CAD
$41.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VZ12 is an add-on neutral pole module for TeSys Vario switch-disconnector from Schneider Electric. Rated 63A to 80A 690V, to be used with V3 and V4 switch bodies. Contacts with early make and late break action. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC). Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France
Depth46 mm
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 30000 cycles DC-1...5, 30000 cycles AC-21
- Network Type
- AC, DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.007846013513513512, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02661486486486486, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.5 kg CO2 eq., 0.4993700000000001
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- N
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Contact Operation
- early make, late break
- Device Short Name
- VZ
- Fire Resistance
- 960 °C IEC 60695-2-1
- Mechanical Robustness
- vibrations 10...150 Hz 1 gn) IEC 60068-2-6shocks 11 ms 15 gn) IEC 60068-2-27
- Number Of Poles
- 1N
- Product Availability
- Stock - Normally stocked in distribution facility
- Protective Treatment
- TC
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Pep Code
- ENVPEP2211001EN
- Pep Verification Date
- 2025-06-18
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 83 mm
- [Ith] Conventional Free Air Thermal Current
- 80 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536904000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Locationleft, right
Certificate AgencyGL, UL, CSA, UKCA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.13483783783783782
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.3 kg CO2 eq., 0.341402027027027
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility Codeneutral pole module
Contacts Type And Composition1 NO
Energy Efficiency OptimizedFalse
Mechanical Durability30000 cycles
Network Frequency50/60 Hz
Performance Levelhigh performance
Product Or Component Typeadditional neutral block
RangeTeSys
Software Versionv5.9.4
Tightening Torque4-4 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 690V and rated current 12A ensuring isolation characterized by rated voltage 8KV. This function is provided for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; CZ
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %35
Width Nominal20 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz
Connections - Terminalsscrew clamp terminals 16-16 mm² flexible - with cable endscrew clamp terminals 25-25 mm² solid
Package Weight(Lbs)0.09 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Product Compatibility
- V3, V4
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 1.0100707432432432
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-18
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-20-50 °C, -20-50 °C
Take BackNo
Mercury FreeYes
Environmental DisclosureENVPEP2211001EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2211001EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- additional neutral block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
