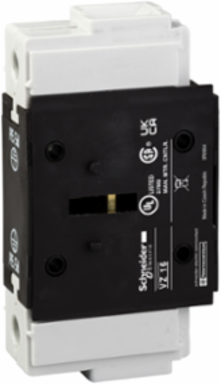

Schneider Electric VZ16 Additional Earthing Block 175A for TeSys V5/V6, 690V, IP20
- MPN: VZ16
- PPN: SCH-VZ16
CAD
$54.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys Vario add-on module, earthing module 125-175A 690V, for TeSys Vario switch-disconnector. To be used with V5 and V6 switch bodies. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Network Frequency
- 50/60 Hz
- Product Or Component Type
- additional earthing block
- Range
- TeSys
- Product Compatibility
- V5 || V6
Network TypeAC || DC
Performance Levelhigh performance
Contacts Type And Compositionwithout
Device Short NameVZ
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- [Ith] Conventional Free Air Thermal Current
- 175 A
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV
- Connections - Terminals
- screw clamp terminals
- Depth
- 63 mm
Height125 mm
Net Weight0.25 kg
Mounting Locationleft || right
Width30 mm
Environment
- Product Certifications
- GL || CSA || UL || UKCA
- Standards
- IEC 60947-3
- Protective Treatment
- TC
- Fire Resistance
- 960 °C IEC 60695-2-1
Ambient Air Temperature For Operation-20-50 °C
Ip Degree Of ProtectionIP20 IEC 60529
Mechanical Robustnessvibrations 10...150 Hz 5 gn) IEC 60068-2-6 || shocks 11 ms 15 gn) IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211001
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
