Schmersal 101172009 Hinge Safety Switch, 111.5 mm Width, IP65, 250 VAC, 1 A
- MPN: 101172009
- PPN: SCM-101172009
CAD
$443.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

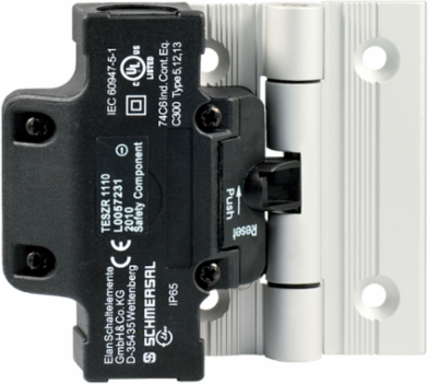

Hinge Safety Switch, 111.5 mm Width, IP65, 250 VAC, 1 A
Features
- 2 cable entries M 20 x 1.5
- Simple fitting, especially on 40 mm profiles
- Thermoplastic enclosure
- Double-insulated
- Good resistance to oil and petroleum spirit

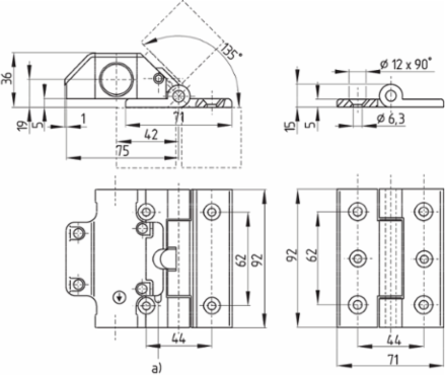

- 111,5 mm x 92 mm x 36 mm
Documentation & Downloads
Specifications
Electrical data
| Thermal test current | 2.5 A |
|---|---|
| Utilisation category AC-15 | 2 A |
| Utilisation category DC-13 | 1 A |
| Switching principle | Slow action |
| Material of the contacts, electrical | Silver |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |

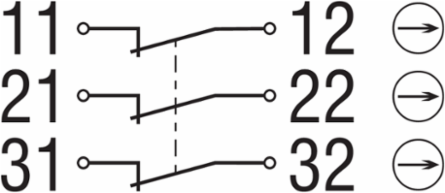

| Switching element | Opener (NC) |
| Switching frequency | 120 /h |
Note
| Note (General) | The opening angle has been set to 4° in factory. | The additional hinge including mounting accessories is also available separately, part number TES/S |
|---|
Mechanical data - Dimensions
| Length x Width x Height | Suitable for mounting to profile systems: 40 mm |
|---|---|
| Width of sensor | 111.5 mm |
| Length of sensor | 36 mm |
|---|---|
| Height of sensor | 92 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 250 VAC |
|---|
| Rated impulse withstand voltage U | 2.5 kV |
|---|
Safety classification - Safety outputs
| B | 2,000,000 Operations |
|---|
| B | 1,000,000 Operations |
|---|
General data - Features
| mounting hinge | Yes |
|---|
| Number of safety contacts | 3 |
|---|
General data
| Standards | BG-GS-ET-15 | EN IEC 60947-5-1 |
|---|---|
| Material of the hinge | Aluminium |
| Enclosure material | Plastic, glass-fibre reinforced thermoplastic, self-extinguishing |
|---|---|
| Gross weight | 280 g |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP65 |
|---|
| Ambient temperature | -25 ... +65 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 1 mm² |
| Cable section, minimum | 0.5 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|---|
| Positive break force, minimum | 1 N |
| Positive break angle | 14 ° |
|---|
Approvals - Standards
| Certificates | cULus | CCC |
|---|
