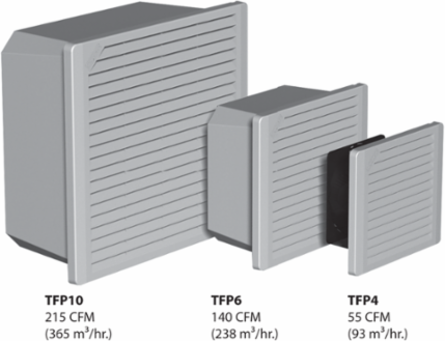

Nvent Hoffman TFP42 TFP4 Side-Mount Filter Fan Type 1, 230V 55CFM, Light Gray, Composite
Nvent Hoffman TFP42 TFP4 Side-Mount Filter Fan Type 1, 230V 55CFM, Light Gray, Composite
- MPN: TFP42
- UPC: 783510413590
- PPN: HOF-TFP42
- UNSPSC: 40101604
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$418.92/ EA
Description
TFP Side-Mount Fans provide enclosure cooling with limited space using filtered airflow cooling. This TFP4 Side-Mount Filter Fan Type 1, TFP42 item is rated 230V 55CFM with material of Composite color Lt Gray.
Features
- Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
- Exhaust Package includes air filter, filter retainer with integral finger guard and grille
- EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
- Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
- 24 VDC, 115 VAC and 230 VAC options available
- Washable foam (Type 1) or disposable (Type 12) filter in fan
- Dynamically-balanced fan impellers molded from polycarbonate material
- 4-inch fan is thermally protected and uses permanently-lubricated ball bearings
- 6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
- Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
- All mounting hardware and installation instructions are furnished
- Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
- Maximum operating temperature 158 F / 70 C
- Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)
Specifications
Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 230
- Width (W)
- 187
- Max Current
- 0.11
- Finish
- Smooth Matte
- Color Code
- RAL 7035
- Size
- 6 x 7 x 3 in
- Voltage Rating
- 200 - 250 VAC
- Ambient Temperature
- 158 Deg F max
Airflow93
Height (H)160
Depth (D)76
MaterialComposite
ColorLight Gray
Weight2
Flow Rate55 CFM max
Amperage Rating.11 A
