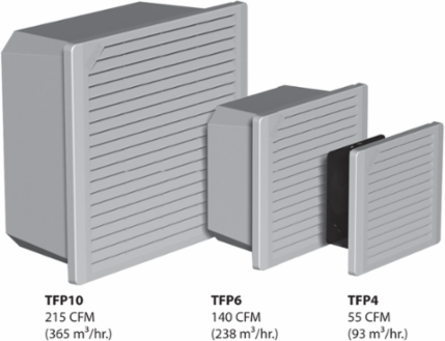

nVent Hoffman TFP42SS TFP4 Side-Mount Filter Fan Type 1, 230V 55CFM, Brushed, Stainless Steel 304
- MPN: TFP42SS
- UPC: 783510112257
- PPN: HOF-TFP42SS
- UNSPSC: 40101604
CAD
$487.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TFP Side-Mount Fans provide enclosure cooling with limited space using filtered airflow cooling. This TFP4 Side-Mount Filter Fan Type 1, TFP42SS item is rated 230V 55CFM with material of Stainless Steel 304 finish Brushed.
Features
- Cooling Fan Package includes fan, air filter, composite air plenum, finger guard and grille
- Exhaust Package includes air filter, filter retainer with integral finger guard and grille
- EMC Upgrade Kit includes a grille standoff collar and a special EMC shielding grille
- Reliable cooling for enclosures with limited space requiring simple filtered airflow for basic cooling
- 24 VDC, 115 VAC and 230 VAC options available
- Washable foam (Type 1) or disposable (Type 12) filter in fan
- Dynamically-balanced fan impellers molded from polycarbonate material
- 4-inch fan is thermally protected and uses permanently-lubricated ball bearings
- 6- and 10-inch fans have ball bearing construction and split-capacitor motors that are thermally protected to avoid premature failure
- Fans have lead wires for power connection with ends stripped 1/2 in. (12 mm)
- All mounting hardware and installation instructions are furnished
- Free airflow from 45 CFM (76 mm cu/hr.) to 215 CFM (365 mm cu/hr.)
- Maximum operating temperature 158 F / 70 C
- Engineered for 50,000 hours of continuous operation without lubrication or service (a monthly maintenance schedule is recommended to ensure optimal cooling performance)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Voltage
- 230
- Width (W)
- 187
- Max Current
- 0.11
- Weight
- 2.2
- Flow Rate
- 55 CFM max
- Amperage Rating
- .11 A
- Housing Material
- Stainless Steel
Airflow93
Height (H)160
Depth (D)76
MaterialStainless Steel 304
Size6 x 7 x 3 in
Voltage Rating200 - 250 VAC
Ambient Temperature158 Deg F max
FinishAlum/Black
