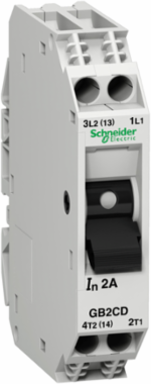

Schneider Electric GB2CD20 TeSys GB2 Circuit Breaker 1P+N 12A DIN Rail Mounted, Icu 1.5kA
- MPN: GB2CD20
- PPN: SCH-GB2CD20
CAD
$139.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GB circuit breaker, 2 poles (1P+N), 12A/250V IEC/277V UL, for the protection of industrial equipment control circuits. It provides thermal magnetic protection with a magnetic tripping level at 165A (13 In) and breaking capacity Icu 1.5kA@240V. It can also be used for protection of DC loads up to 12A/24V DC-13 with a breaking capacity Icu 1.5kA@24V. Compact device (30mm wide), mounting on 35mm DIN-rail, control by toggle lever (start-stop guaranteed for 8000 cycles). Sold in lots of 3 units. Multi standards certified (IEC, UL, CSA).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France
Depth67 mm
Complementary Attributes
- Line Rated Current
- 12 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Mechanical Robustness
- shocks 22 Gn for 20 ms IEC 60068-2-27, vibrations 5 Gn, 5...110 Hz IEC 60068-2-6
- Mounting Support
- rail, plate
- Utilisation Category
- category A IEC 60947-2DC-12 IEC 60947-5-1, DC-13 IEC 60947-5-1
- [Ue] Rated Operational Voltage
- 250 V AC 50/60 Hz IEC 60947-2, 277 V AC 60 Hz CSA C22.2 No 235, 277 V AC 60 Hz UL 107748 V DC
- Carbon Footprint Of The Distribution Phase [A4]
- 0, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.004183306690366238
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 2 kg CO2 eq., 2.363720566749677
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- toggle
- Device Short Name
- GB2
- Energy Efficiency Optimized
- False
- Magnetic Tripping Current
- 165-165 A
- Mounting Mode
- by clips
- Network Type
- AC/DC
- Power Dissipation Per Pole
- 2 W
- Product Name
- TeSys GB2
- Protective Treatment
- TC
- Range
- TeSys
- Software Version
- v6.2.4
- Tightening Torque
- 1.2 N.m connector
- Trip Unit Technology
- thermal-magnetic
- R Magnetic Tripping Current
- 165-165 A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation against overloads and short circuits and protect people and premises at risk of fire or explosion against insulation defects in a circuit with rated voltage 250V (Ue), rated current 2A (In), with 1P+N poles, a rated breaking capacity 15kA (Icn), and, in the Industrial application areas, while protecting them against the penetration of solid objects and liquids (IP20) in accordance with the standard IEC 62262, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 26.28
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 74 mm
- [Ics] Rated Service Short-circuit Breaking Capacity
- 75 % 230/240 V AC 50/60 Hz IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 60.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Mounting Positionvertical, horizontal
Poles Description1P + N
Certificate AgencyUL, CSA
Connections - Terminalsconnector 2 0.75-2.5 mm²flexible with cable endconnector 1 0.75-6 mm²solid without cable end, connector 2 0.75-4 mm²solid without cable endconnector 1 0.75-4 mm²flexible with cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1552255178671008, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.4 kg CO2 eq., 0.40726592069583606
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2023
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Compatibility CodeGB2
Device Applicationcontrol
Electrical Durability8000 cycles
Fire Resistance960 °C IEC 60695-2-1
Mechanical Durability8000 cycles
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles1P + N
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typecircuit breaker
Quantity Per Setset of 6
ReturnabilityNo
Sustainable PackagingYes
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2306023EN
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; France, FR
Recyclability Potential In %36
Width Nominal15 mm
[Uimp] Rated Impulse Withstand Voltage4 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Halogene Performance
- Halogen free plastic parts product
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 2.93039531200298
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Eu Rohs Directive
- Compliant
- Ip Degree Of Protection
- IP20 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2306023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Reach Free ShvcYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
9 Mm Pitches2
Environmental DisclosureENVPEP2306023EN
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude9842.52 ft (3000 m)
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-04-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- circuit breaker
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
