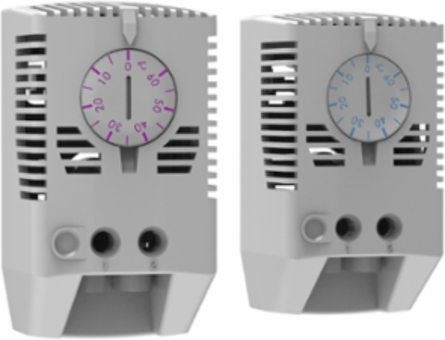

nVent Hoffman ETR201 Thermostat NO cooling, Setting range: 0ºC to 60ºC

MPN: ETR201
UPC: 783510480981
PPN: HOF-ETR201

$141.08

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ETR is used to control installed devices. Such devices could be a filter fan or a fan heater. This Thermostat, ETR, ETR201 item measures 72x40x36mm has a material of Plastic color Light Grey, finish Smooth.

Features

Description: Thermostat with NC/NO contacts to manage temperature in panels. ETR202 with a normally closed contact for regulating heaters. ETR201 with a normally open contact for regulating cooling devices or signal devices. Sensor element thermostatic bimetal. Mounting clip for 35 mm DIN rail (EN 60715).
Material: Plastic according to UL94 V-0.
Setting range: 0 °C to +60 °C. Switching temperature difference less than 7 °K, and switching point tolerance ±4 °K.
Switch capacity: 240 V AC, 10(2) A. 120 V AC, 15(2) A. 24 V DC, 30 W. Value in brackets for inductive load.
Operating temperature: -20 °C to +80 °C.
Service life: > 100,000 cycles.
Connection: Screw terminal for cable (0.5 to 2.5 mm²).
Protection: IP 20.
Approvals: CE, EAC, cULus_UL Listed.
Finish: RAL 7035.
Pack quantity: 1 piece.
Switch capacity: 240 V AC, 10(2) A. 120 V AC, 15(2) A. 24 V DC, 30 W; value in brackets for inductive load
Operating temperature: -20 °C to +80 °C
Service life: > 100,000 cycles
Connection: Screw terminal for cable (0.5 to 2.5 mm²)
