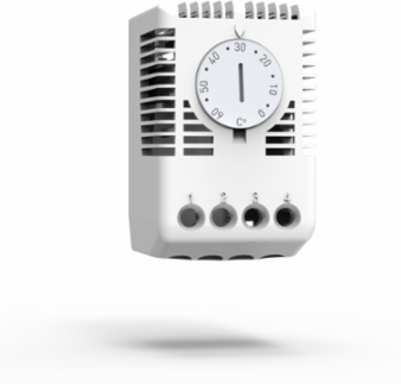

nVent Hoffman ETR200 Thermostat NO+NC, Setting range: 0ºC to 60ºC

MPN: ETR200
UPC: 783510480967
PPN: HOF-ETR200

$176.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This ETR200 is used to control installed devices. Such devices could be a filter fan or a fan heater. This Thermostat, ETR200, ETR200 item measures 60x37x53mm has a material of Plastic color Light Gray, finish Smooth.

Features

Description: Thermostat with changeover contact to manage any kind of device, heater or cooling. Sensor element thermostatic bimetal. Mounting clip for 35 mm DIN rail (EN 60715).
Material: Plastic according to UL94 V-0.
Setting range: 0 °C to +60 °C. Switching temperature difference less than 3 °K, and switching point tolerance ±3 °K.
Switch capacity: NC contact, 100-250 V AC, 10(2) A. NO contact, 100-250 V AC, 5(2) A, for 230 V AC operation only. 24 V DC, 30 W. Value in brackets for inductive load.
Operating temperature: -40 °C to +80 °C.
Service life: > 100,000 cycles.
Connection: Screw terminal for cable (0.5 to 2.5 mm²).
Protection: IP 20.
Approvals: CE, EAC, cULus_UL Listed.
Finish: RAL 7035.
Pack quantity: 1 piece.
Setting range: 0 °C to +60 °C; switching temperature difference less than 3 °K, and switching point tolerance ±3 °K
Switch capacity: NC contact, 100-250 V AC, 10(2) A. NO contact, 100-250 V AC, 5(2) A, for 230 V AC operation only; 24 V DC, 30 W; value in brackets for inductive load
Operating temperature: -40 °C to +80 °C
Service life: > 100,000 cycles
