Weidmuller 1161770000 THM ET S7 300-1 GE
- MPN: 1161770000
- PPN: WDM-1161770000
CAD
$439.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

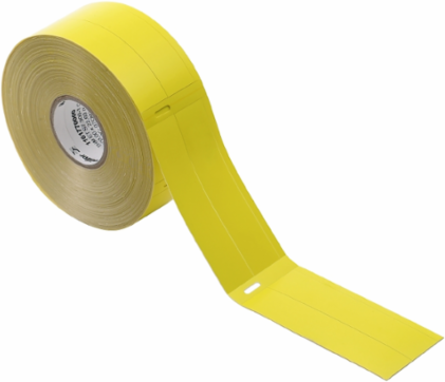

THM, Device markers, 103 x 22.6 mm, Siemens, yellow
Specifications
General Data
| Application/manufacturer | Siemens |
|---|---|
| Colour | yellow |
| Material | Polypropylene |
| Number per roll | 500 |
| Printing method | Thermotransfer |
| Version | halogen-free |
| compatible printer | 2430920000 2448870000 |
| Approval acc. to UL 969 | No |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 4 |
| Operating temperature range | -50...100 °C |
| UL 94 flammability rating | HB |
| Width | 22.6 mm |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 55-12-16-00 |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 22.6 mm |
|---|---|
| Height | 103 mm |
| Depth | 0.08 mm |
| Net weight | 346 g |
| Width (inches) | 0.89 inch |
|---|---|
| Height (inches) | 4.055 inch |
| Depth (inches) | 0.003 inch |
