Weidmuller 1059870000 THM GEW 20/8 WS
- MPN: 1059870000
- PPN: WDM-1059870000
CAD
$812.21
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

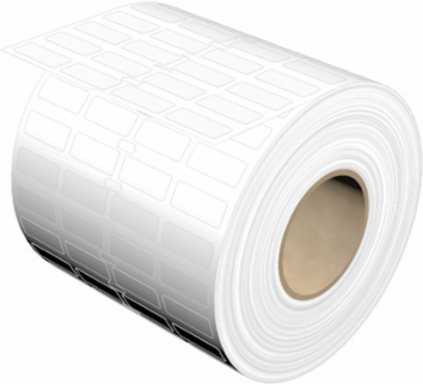

THM, Device markers, 8 x 20 mm, white
Documentation & Downloads
Specifications
General Data
| Adhesive | Natural rubber adhesive |
|---|---|
| Colour | white |
| Material | Cotton fabric |
| Number per roll | 10,000 |
| Operating temperature range | -29...80 °C |
| UL 94 flammability rating | V-0 |
| Width | 20 mm |
| Approval acc. to UL 969 | No |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 9 |
| Number per sheet | 10,000 |
| Printing method | Thermotransfer |
| Version | Self-adhesive |
| compatible printer | 2430920000 2448870000 |
Dimensions And Weights
| Width | 20 mm |
|---|---|
| Height | 8 mm |
| Depth | 0.3 mm |
| Net weight | 700 g |
| Width (inches) | 0.787 inch |
|---|---|
| Height (inches) | 0.315 inch |
| Depth (inches) | 0.012 inch |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 55-12-16-00 |
Approvals
| ROHS | Conform |
|---|
