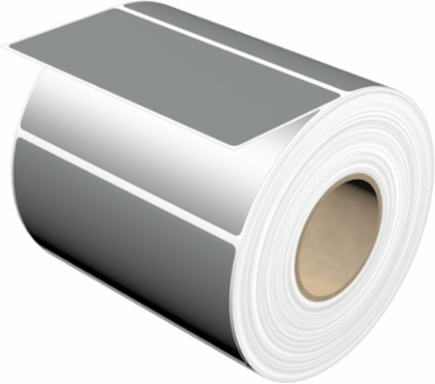

Weidmuller 1751820001 THM MT30X 101/48 SI
- MPN: 1751820001
- PPN: WDM-1751820001
CAD
$741.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
THM, Device markers, 48 x 101 mm, silver
Documentation & Downloads
Specifications
General Data
| Adhesive | Acrylate adhesive |
|---|---|
| Colour | silver |
| Material | Polyester |
| Operating temperature range | -40...150 °C |
| UL 94 flammability rating | V-0 |
| Width | 101 mm |
| Approval acc. to UL 969 | Yes |
|---|---|
| Halogen | No |
| Number per roll | 500 |
| Printing method | Thermotransfer |
| Version | Self-adhesive, halogen-free |
| compatible printer | 2430920000 2448870000 |
Dimensions And Weights
| Width | 101 mm |
|---|---|
| Height | 48 mm |
| Depth | 0.08 mm |
| Net weight | 428 g |
| Width (inches) | 3.976 inch |
|---|---|
| Height (inches) | 1.89 inch |
| Depth (inches) | 0.003 inch |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 30-21-18-01 |
Approvals
| ROHS | Conform |
|---|
