Weidmuller 1003410000 THM MT30X 89/60 SI
- MPN: 1003410000
- PPN: WDM-1003410000
CAD
$428.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

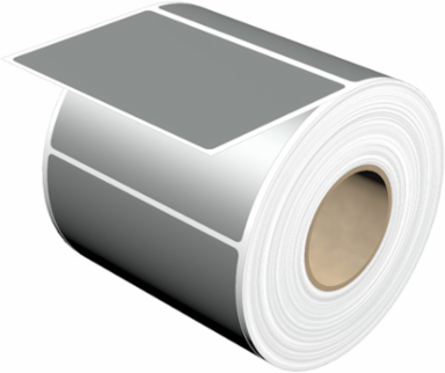

THM, Device markers, 60 x 89 mm, silver
Documentation & Downloads
Specifications
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 30-21-18-01 |
General Data
| Adhesive | Acrylate adhesive |
|---|---|
| Colour | silver |
| Material | Polyester |
| Operating temperature range | -40...150 °C |
| UL 94 flammability rating | V-0 |
| Width | 89 mm |
| Approval acc. to UL 969 | Yes |
|---|---|
| Halogen | No |
| Number per roll | 1,000 |
| Printing method | Thermotransfer |
| Version | Self-adhesive, halogen-free |
| compatible printer | 2430920000 2448870000 |
Dimensions And Weights
| Width | 89 mm |
|---|---|
| Height | 60 mm |
| Depth | 0.08 mm |
| Net weight | 921 g |
| Width (inches) | 3.504 inch |
|---|---|
| Height (inches) | 2.362 inch |
| Depth (inches) | 0.003 inch |
Approvals
| ROHS | Conform |
|---|
