Weidmuller 1856640000 THM WO 12/18 WS
- MPN: 1856640000
- PPN: WDM-1856640000
CAD
$548.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

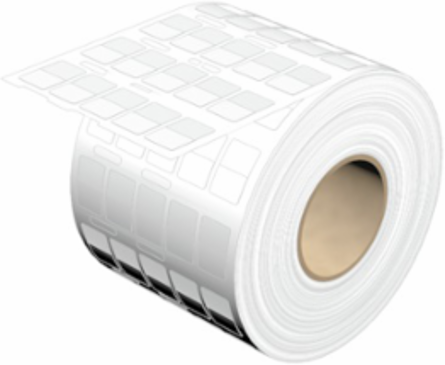

THM, Conductor and cable markers, 1.9 - 1.9 mm, 12 x 18 mm, white
Documentation & Downloads
Specifications
General Data
- Adhesive
- Polyacrylate adhesive
- Colour
- white
- Material
- Polyester film
- Number per roll
- 10,000
- Size of labelling field
- 12 x 9 mm
- UL 94 flammability rating
- V-0
- Width
- 18 mm
Approval acc. to UL 969Yes
HalogenNo
Material colour according to resistance code9
Operating temperature range-40...150 °C
Type of printingneutral
VersionSelf-adhesive
compatible printer2430920000 2448870000
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 18 mm
- Height
- 12 mm
- Depth
- 0.025 mm
- Net weight
- 492 g
Width (inches)0.709 inch
Height (inches)0.472 inch
Depth (inches)0.001 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 1.9 - 1.9 mm
- Conductor O.D., min.
- 1.9 mm
- Conductor cross-section, min.
- 0.75 mm²
Conductor O.D., max.1.9 mm
Conductor cross-section, max.6 mm²
HalogenNo
