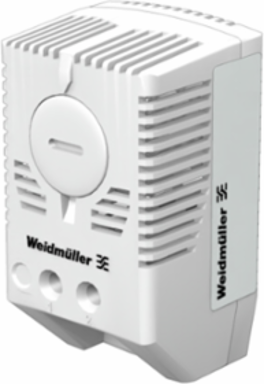

Weidmuller 2558230000 THSW 0°+60°C NC
- MPN: 2558230000
- PPN: WDM-2558230000
CAD
$52.39
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Temperature switch, grey white
Documentation & Downloads
Specifications
General Data
| Contact design | 1 NC contact |
|---|---|
| Switching current, NC contact | 10 A |
| Switching difference | <7 K |
| Switching voltage | 240 V AC |
| Temperature setting range, min. | 0.01 °C |
| Type of mounting | Rail |
| Operating temperature range | -40...80 °C |
|---|---|
| Switching current, NC contact, inductive load cos φ = 0.6 | 2 A |
| Switching tolerance | ±4 K |
| Temperature setting range, max. | 40 °C |
| Type of connection | Screw connection |
Approvals
| Approvals | cURus |
|---|---|
| UL File Number Search | E497840 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 40 mm |
|---|---|
| Height | 72 mm |
| Depth | 36 mm |
| Net weight | 50 g |
| Width (inches) | 1.575 inch |
|---|---|
| Height (inches) | 2.835 inch |
| Depth (inches) | 1.417 inch |
Classifications
| ETIM 6.0 | EC002014 |
|---|---|
| eClass 9.1 | 27-21-07-07 |
| ETIM 7.0 | EC002014 |
|---|---|
| eClass 10.0 | 27-21-07-07 |
