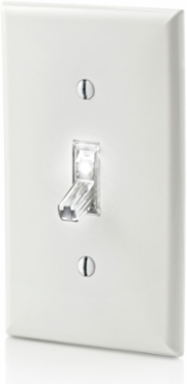

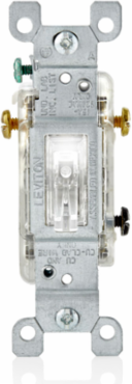

Leviton L1463-2C 15 Amp Toggle LED Illuminated 3-Way Switch, 120 Volt, Residential Grade
Leviton L1463-2C 15 Amp Toggle LED Illuminated 3-Way Switch, 120 Volt, Residential Grade
- MPN: L1463-2C
- UPC: 078477187913
- PPN: LEV-L1463-2C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$20.15/ EA
Description
15 Amp, 120 Volt, Toggle LED Illuminated 3-Way Switch, Residential Grade, Grounding - Clear
Features
- Designed to work with LED, CFL and incandescent bulbs, no neutral required
- Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- White LED light inside the switch provides a refreshed and modern appearance
- Replaces any standard switch
- Toggle model compatible with traditional Toggle wallplates, wallplates sold separately
- Features Quickwire push-in and Side wiring for easy installation
- Quickwire push-in terminals accept #14 AWG solid copper wire only
- Side wire terminal screws accept up to #12 AWG copper or copper clad wire
- Ideal solution for bathrooms, bedrooms, hallways, staircases, basements, laundry/utility rooms and garages.
- Limited 2-year warranty
- CAUTION: To clean use a damp cloth with mild soap. DO NOT use disinfecting products, including foggers, sprays, or other types of atomized cleaning agents
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box
- PERFORMANCE - Designed to work with LED, CFL and incandescent loads, no neutral required
- SAFE - Switch remains illuminated in the OFF position, so it is easy to locate in a dark room
- MODERN - White LED light inside the switch provides a refreshed and modern appearance
- CONVENIENT - Replaces any standard 3-Way switch; controls light(s) from two locations
Specifications
Standards and Certifications
- NOM
- NOM
UL StandardcULus
Material Specifications
- Actuator Material
- Thermoplastic
- Strap Material
- Steel
Body MaterialThermoplastic
Mechanical Specifications
- Terminal Accom.
- Side Wire #14-#12 AWG; Quickwire #14 AWG Solid copper wire only
- Torque Range
- 14 – 18 in.-lbs
TerminationSide Wire, Quickwire Push-In
TypeLED Illuminated Switch
Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Product Features
- Amperage
- 15 A
- Device Type
- Toggle Switch
- Grade
- Residential
- HP Rating
- 1/2HP-120V
- LED Color Temperature
- 6000K
- Pole
- 3
ColorClear
FeatureIlluminated
GroundingGrounding
Illumination ColorWhite
Max. Amperage12 Amp
Voltage120 VAC
Warranty
- Warranty
- 2-Year Limited
