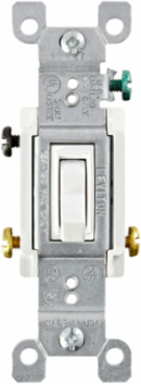

Leviton 1453-2W 15 Amp 3-Way Toggle Switch, 120 Volt, Grounding, White
Leviton 1453-2W 15 Amp 3-Way Toggle Switch, 120 Volt, Grounding, White
- MPN: 1453-2W
- UPC: 078477174708
- PPN: LEV-1453-2W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$2.73/ EA
Description
15 Amp, 120 Volt, Toggle Framed 3-Way AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired, - White Made in USA
Features
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Specifications
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Actuator Material
- Thermoplastic
- Body Material
- Thermoplastic
- Feature
- Framed
- HP Rating
- 1/2HP-120V
- Pole
- 3
- Strap Material
- Steel
- Termination
- Quickwire Push-In & Side
- Voltage
- 120 VAC
Amperage15 A
ColorWhite
GroundingGrounding
Max. Amperage12 Amp
Standards and CertificationsUL/CSA
Terminal Accom.Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
TypeToggle Switch
Warranty2-Year Limited
