Leviton CS215-2W 15 Amp Double-Pole Toggle Switch, Quiet, 120/277V, Commercial Spec Grade
- MPN: CS215-2W
- UPC: 078477815588
- PPN: LEV-CS215-2W
CAD
$9.88
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

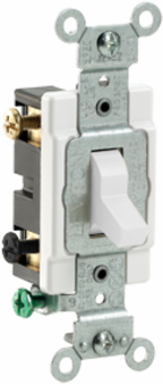

15 Amp, 120/277 Volt, Toggle Double-Pole AC Quiet Switch, Commercial Spec Grade, Grounding, Side Wired, - White
Features
- Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.
Documentation & Downloads
Specifications
Additional
- Function
- Double-Pole
- Horsepower Rating
- 1/2 HP-120V, 2 HP-240/277V
- Operating Temperature
- -40C to 65C
- Terminal Accommodation
- 14-12 AWG
- Material
- Thermoplastic (Actuator, Body), Steel (Strap, Terminal Screws), PBT (Base), Nylon (Cover), Polycarbonate (Toggle), Silver-Cadmium (Contacts)
- Terminal Screws
- Steel 8-32
- Grade
- Commercial Specification Grade
- Dielectric Voltage
- Withstands 1500V for 1 minute
- Country of Origin
- Mexico
Amperage15 A
Voltage120/277 VAC
Screw Terminal Torque14-18 in-lbs
TerminationSide Wire
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
FlammabilityV-2 per UL94
ComplianceANSI C-73, CSA C22.2 No. 111, NEMA WD-1 & WD-6, NOM 057, UL Fed Spec WS896E, UL 20
ColorWhite
Warranty10-Year Limited
