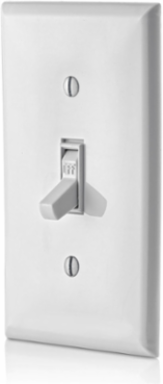

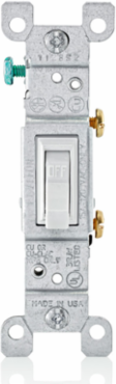

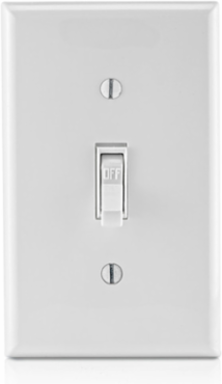

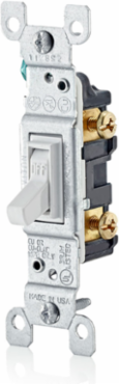

Leviton 1451-2W 15 Amp Toggle Switch, 120 Volt, Thermoplastic, Grounding, UL/CSA Certified
- MPN: 1451-2W
- UPC: 078477778203
- PPN: LEV-1451-2W
CAD
$1.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
15 Amp, 120 Volt, Toggle Framed Single-Pole AC Quiet Switch, Residential Grade, Grounding, Quickwire Push-In & Side Wired - White Made in USA
Features
- Faster installation with combination of side wiring and Quickwire push-in wiring
- Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
- Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
- Large head triple-drive combination screws (Standard, Phillips, Robertson) for fast wiring installation
- Impact-resistant, durable thermoplastic toggle and frame
- Backed by a Limited Two-Year Warranty
- NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
- Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- HP Rating
- 1/2 HP - 120 V
- Torque Range
- 14 – 18 in.-lbs
- Grounding
- Grounding
- Material
- Thermoplastic
- Termination
- Quickwire Push-In & Side Wired
- Standards and Certifications
- UL/CSA
- Color
- White
Voltage120 VAC
Max Amperage12 Amp
Pole1
TypeToggle Switch
Strap MaterialSteel
Terminal AccommodationSide wiring accepts #10, #12 and #14 AWG copper or copper clad wire, Quickwire push-in terminals accept #14 AWG solid copper wire only
RoHS CompliantFalse
Country of OriginPlease Contact Customer Service
