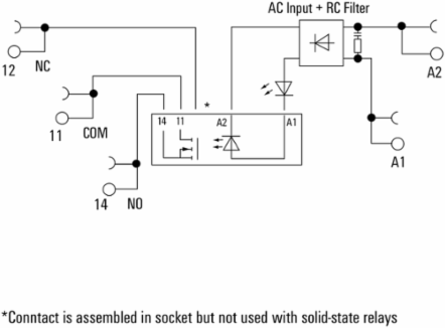

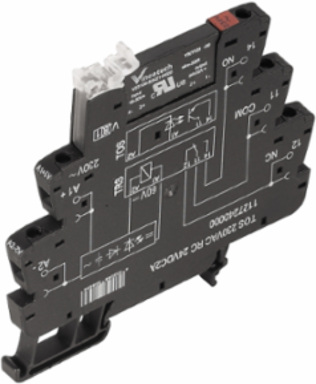

Weidmuller 1127230000 TOS Solid-State Relay 120VAC, 2A, 3-33V DC Switching Voltage
- MPN: 1127230000
- PPN: WDM-1127230000
CAD
$64.01
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TERMSERIES, solid-state relais, 1 NO contact (MOS-FET), Rated control voltage: 120 V AC ±10 % , Rated switching voltage: 3...33 V DC, Continuous current: 2 A, Screw connection
Documentation & Downloads
Specifications
General Data
- Rail
- TS 35
- UL 94 flammability rating
- V-0
Colourblack
Probability Of Failure
- MTTF
- 636 Years
Load Side
- Rated switching voltage
- 3...33 V DC
- Rated switching current
- 2 A
- Switch-on delay
- < 6.5 ms
- Voltage drop at max. load
- ≤ 120 mV
- Min. switching current
- 5 mA
- Protective circuit, load side
- Free-wheeling diode
Continuous current2 A
Inrush current15 A / 10 ms
Switch-off delay< 10 ms
Leakage current< 10 µA
Short-circuit-proofNo
max. switching frequency (AC control voltage)3 Hz
Approvals
- Approvals
- CE, CULUS, DNV GL, EAC
- UL File Number Search
- E141197
ROHSConform
Dimensions And Weights
- Width
- 6.4 mm
- Height
- 89.6 mm
- Depth
- 87.8 mm
- Net weight
- 32.4 g
Width (inches)0.252 inch
Height (inches)3.528 inch
Depth (inches)3.457 inch
Connection Data
- Wire connection method
- Screw connection
- Tightening torque, max.
- 0.4 Nm
- Clamping range, min.
- 0.14 mm²
- Wire connection cross section AWG, min.
- AWG 26
- Wire cross-section, solid, min.
- 0.14 mm²
- Wire connection cross-section, finely stranded, min.
- 0.14 mm²
- Wire cross-section, finely stranded, min. (AWG)
- AWG 26
- Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
- 0.25 mm²
- Conductor cross-section, flexible, AEH (DIN 46228-1), min.
- 0.25 mm²
- Wire connection cross section, finely stranded, two clampable wires, min.
- 0.5 mm²
- Twin wire-end ferrules, min.
- 0.5 mm²
- Blade size
- size PH0
Stripping length, rated connection8 mm
Clamping range, rated connection1.5 mm²
Clamping range, max.2.5 mm²
Wire connection cross section AWG, max.AWG 14
Wire cross-section, solid, max.2.5 mm²
Wire connection cross section, finely stranded, max.2.5 mm²
Wire cross-section, finely stranded, max. (AWG)AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.1 mm²
Twin wire-end ferrules, max.1 mm²
Gauge to IEC 60947-1A1, B1
Rated Data Ul
- Ambient temperature (operational), max.
- 60 °C
- Connection cross-section AWG, max.
- AWG 14
- Tightening torque, max.
- 0.4 Nm
Connection cross-section AWG, min.AWG 26
Type of conductorrigid copper conductor, flexible copper conductor
Pollution severity level2
Contact Data
- Contact type
- 1 NO contact (MOS-FET)
Control Side
- Rated control voltage
- 120 V AC ±10 %
- Power rating
- 0.84 VA
- Status indicator
- Green LED
- RC filter
- 94 Ω / 100 nF
- Coil voltage of the replacement relay
- 60 V DC
Nominal control current7 mA AC (±20 %)
Cut-in / dropout voltage79 V / 60 V AC
Protective circuitRectifier, RC element
Coil voltage of the replacement relay deviating from the rated control voltageYes
Classifications
- ETIM 6.0
- EC001504
- eClass 9.0
- 27-37-16-04
- eClass 10.0
- 27-37-16-04
ETIM 7.0EC001504
eClass 9.127-37-16-04
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Insulation Coordination
- Rated voltage
- 300 V
- Surge voltage category
- III
- Dielectric strength for control side - load side
- 2.5 kVeff
- Impulse withstand voltage
- 6 kV (1.2/50 µs)
Pollution severity2
Clearance and creepage distances for control side - load side≥ 5.5 mm
Dielectric strength to mounting rail4 kVeff / 1 Min.
Protection degreeIP20
Temperatures
- Humidity
- 5-95% relative humidity, Tu = 40°C, without condensation
- Operating temperature, min.
- -20 °C
- Storage temperature, min.
- -40 °C
- Storage temperature
- -40 °C...70 °C
Operating temperature, max.60 °C
Storage temperature, max.70 °C
Operating temperature-20 °C...60 °C
Ratings Iecex/Atex/Cul
- Certificate no. (cULus)
- E141197
Further Details Of Approvals / Standards
- Standards
- DIN EN 50178
Certificate no. (cULus)E141197
