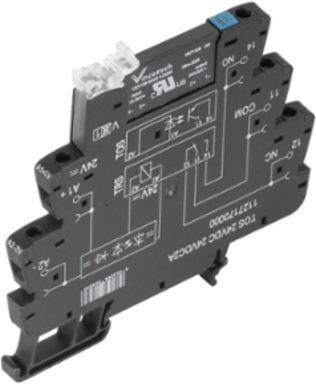

Weidmuller 1126930000 TERMSERIES Solid-State Relay, 12V DC Control, 0-48V DC Switching, 100mA

MPN: 1126930000
PPN: WDM-1126930000

$48.78

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

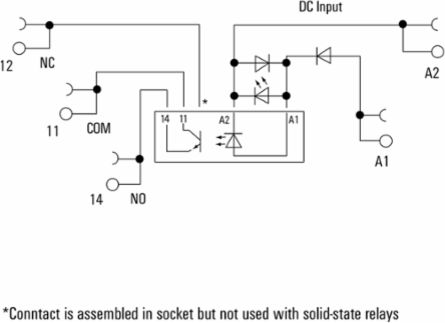

Description

TERMSERIES, solid-state relais, 1 NO contact (Bipolar transistor), Rated control voltage: 12 V DC ±20 % , Rated switching voltage: 0…48 V DC, Continuous current: 100 mA, Screw connection

Documentation & Downloads

Specifications

General Data

Rail	TS 35
UL 94 flammability rating	V-0

Colour	black

Probability Of Failure

MTTF	3,026 Years

Load Side

Rated switching voltage	0…48 V DC
Rated switching current	100 mA
Switch-off delay	≤ 3 ms
Leakage current	< 10 µA
Short-circuit-proof	No
max. switching frequency (DC control voltage)	10 Hz

Continuous current	100 mA
Switch-on delay	≤ 0.4 ms
Voltage drop at max. load	≤ 1 V
Min. switching current	500 µA
Protective circuit, load side	Free-wheeling diode

Approvals

Approvals	CE, CULUS, DNV GL, EAC
UL File Number Search	E141197

ROHS	Conform

Dimensions And Weights

Width	6.4 mm
Height	89.6 mm
Depth	87.8 mm
Net weight	31.4 g

Width (inches)	0.252 inch
Height (inches)	3.528 inch
Depth (inches)	3.457 inch

Connection Data

Wire connection method	Screw connection
Tightening torque, max.	0.4 Nm
Clamping range, min.	0.14 mm²
Wire connection cross section AWG, min.	AWG 26
Wire cross-section, solid, min.	0.14 mm²
Wire connection cross-section, finely stranded, min.	0.14 mm²
Wire cross-section, finely stranded, min. (AWG)	AWG 26
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.	0.25 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), min.	0.25 mm²
Wire connection cross section, finely stranded, two clampable wires, min.	0.5 mm²
Twin wire-end ferrules, min.	0.5 mm²
Blade size	size PH0

Stripping length, rated connection	8 mm
Clamping range, rated connection	1.5 mm²
Clamping range, max.	2.5 mm²
Wire connection cross section AWG, max.	AWG 14
Wire cross-section, solid, max.	2.5 mm²
Wire connection cross section, finely stranded, max.	2.5 mm²
Wire cross-section, finely stranded, max. (AWG)	AWG 14
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.	2.5 mm²
Conductor cross-section, flexible, AEH (DIN 46228-1), max.	2.5 mm²
Wire cross-section, finely stranded, two clampable wires, max.	1 mm²
Twin wire-end ferrules, max.	1 mm²
Gauge to IEC 60947-1	A1, B1

Rated Data Ul

Ambient temperature (operational), max.	60 °C
Connection cross-section AWG, max.	AWG 14
Tightening torque, max.	0.4 Nm

Connection cross-section AWG, min.	AWG 26
Type of conductor	rigid copper conductor, flexible copper conductor
Pollution severity level	2

Contact Data

Contact type	1 NO contact (Bipolar transistor)

Control Side

Rated control voltage	12 V DC ±20 %
Power rating	112 mW
Cut-in / dropout current	0.5 mA / 0.23 mA DC
Protective circuit	Rectifier
Coil voltage of the replacement relay	5 V DC

Nominal control current	5 mA DC (±20 %)
Cut-in / dropout voltage	4.9 V / 4 V DC
Status indicator	Green LED
Coil voltage of the replacement relay deviating from the rated control voltage	Yes

Classifications

ETIM 6.0	EC001504
eClass 9.0	27-37-16-04
eClass 10.0	27-37-16-04

ETIM 7.0	EC001504
eClass 9.1	27-37-16-04

Environmental Product Compliance

REACH SVHC	Lead 7439-92-1

Insulation Coordination

Rated voltage	300 V
Surge voltage category	III
Dielectric strength for control side - load side	2.5 kVeff
Impulse withstand voltage	6 kV (1.2/50 µs)

Pollution severity	2
Clearance and creepage distances for control side - load side	≥ 5.5 mm
Dielectric strength to mounting rail	4 kVeff / 1 Min.
Protection degree	IP20

Temperatures

Humidity	5-95% relative humidity, Tu = 40°C, without condensation
Operating temperature, min.	-20 °C
Storage temperature, min.	-40 °C
Storage temperature	-40 °C...70 °C
