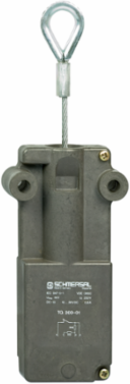

Schmersal 101114531 TQ 200-01 Pull-Wire Switch, 250 mm Height, IP67 Protection, 1,000,000 Operations
- MPN: 101114531
- PPN: SCM-101114531
CAD
$436.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TQ 200-01 Pull-Wire Switch, 250 mm Height, IP67 Protection, 1,000,000 Operations
Features
- for suspended mounting
Documentation & Downloads
Specifications
Key Specifications
- Width
- 60 mm
- Depth
- 32 mm
Height250 mm
Electrical data
- Thermal test current
- 1 A

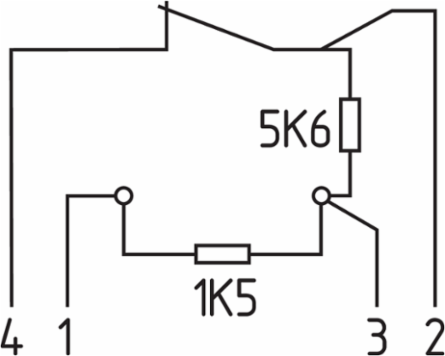

- Switching element
- Opener (NC)
Required rated short-circuit current1,000 A
Switching principleSlow action

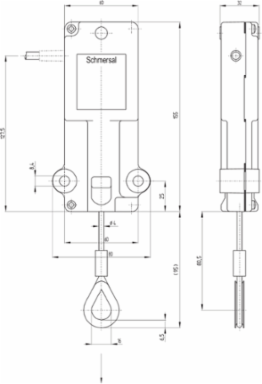

Mechanical data - Dimensions
- Width
- 60 mm
- Depth
- 32 mm
Height250 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 40 V
- Overvoltage category
- III
Rated impulse withstand voltage U2.5 kV
Degree of pollution3
Safety classification - Safety outputs
- B
- 2,000,000 Operations
Note (Bat 10% I | and ohmic load
General data - Features
- Number of normally closed (NC)
- 1
General data
- Standards
- EN IEC 60947-5-1
- Gross weight
- 706 g
Enclosure materialLight alloy die-casting
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP54
- Ambient temperature
- -40 ... +80 °C
- Storage and transport temperature, maximum
- +80 °C
- Note (Relative humidity)
- non-condensing
- Restistance to shock
- 30 g
Degree of protection of the control elementIP67
Storage and transport temperature, minimum-40 °C
Relative humidity, maximum93 %
Resistance to vibrations10 - 150 Hz (0.5 mm / 5 g)
Protection classII
Mechanical data - Connection technique
- Termination
- Shielded cable
- Wire cross-section
- 1 mm
Length of cable3 m
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
- Actuating force, maximum
- 44 N
Actuating force, minimum36.8 N
Actuating speed60 mm/min
