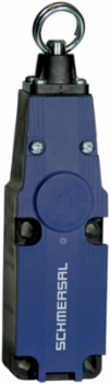

Schmersal 101192481 TQ 700-20 Pull-Wire Switch, 10 m Wire Length, IP67, 205 g Weight
- MPN: 101192481
- PPN: SCM-101192481
CAD
$211.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TQ 700-20 Pull-Wire Switch, 10 m Wire Length, IP67, 205 g Weight
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- one-side operation / wire up to 10 m long
- Position indicator
- Large wiring compartment
- Twisting of towing eye not possible
- One tension force for cable lengths up to 10 m
Documentation & Downloads
Specifications
Key Specifications
- Width
- 40.5 mm
- Depth
- 42.2 mm
Height160 mm
Electrical data
- Thermal test current
- 10 A
- Utilisation category AC-15
- 4 A
- Utilisation category DC-13
- 4 A
- Switching principle
- Slow action
Utilisation category AC-15230 VAC
Utilisation category DC-1324 VDC

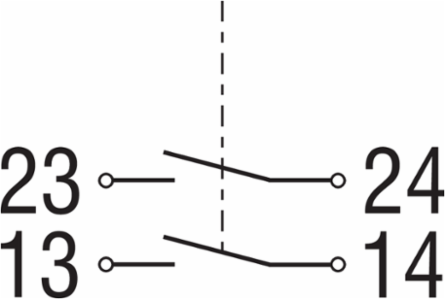

Switching elementNormally open contact (NO)
Material of the contacts, electricalSilver
Note
- Note (General)

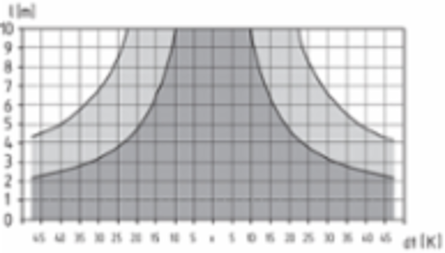

- Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature. | As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner. | At 2 m ... 5 m distance intermediate wire supports are required, see accessories

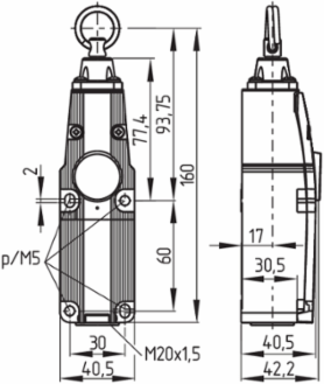

Mechanical data - Dimensions
- Width
- 40.5 mm
- Depth
- 42.2 mm
Height160 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 500 V
Rated impulse withstand voltage U6 kV
Safety classification - Safety outputs
- B
- 100,000 Operations
General data - Features
- Number of normally open (NO)
- 2
General data
- Standards
- EN IEC 60947-5-1
- Material of the housing cover
- Glass-fibre, thermoplastic
- Gross weight
- 205 g
Enclosure materialGlass-fibre, thermoplastic
Length of the wire, maximum10 m
Safety classification
- Standards
- EN ISO 13849-1
Mission time20 Year(s)
Ambient conditions
- Degree of protection
- IP67
Ambient temperature-25 ... +70 °C
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
- Cable section, maximum
- 2.5 mm²
Cable section, minimum0.75 mm²
Note (Cable section)All indications including the conductor ferrules.
Mechanical data
- Mechanical life, minimum
- 1,000,000 Operations
Approvals - Standards
- Certificates
- TÜV
