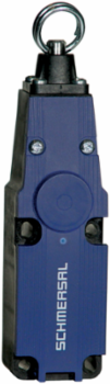

Schmersal 101192480 TQ 700-02 Pull-Wire Switch, IP67, 10 m Wire Length, Thermoplastic Enclosure
- MPN: 101192480
- PPN: SCM-101192480
CAD
$220.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TQ 700-02 Pull-Wire Switch, IP67, 10 m Wire Length, Thermoplastic Enclosure
Features
- 1 Cable entry M 20 x 1.5
- Thermoplastic enclosure
- one-side operation / wire up to 10 m long
- Position indicator
- Large wiring compartment
- Twisting of towing eye not possible
- One tension force for cable lengths up to 10 m
Documentation & Downloads
Specifications
Key Specifications
| Width | 40.5 mm |
|---|---|
| Depth | 42.2 mm |
| Height | 160 mm |
|---|
Electrical data

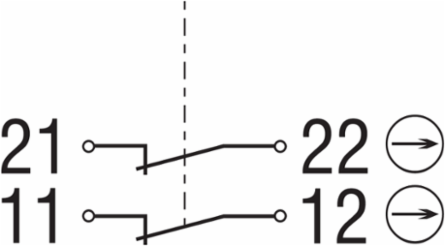

| Thermal test current | 10 A |
|---|---|
| Utilisation category AC-15 | 4 A |
| Utilisation category DC-13 | 4 A |
| Switching principle | Slow action |
| Utilisation category AC-15 | 230 VAC |
|---|---|
| Utilisation category DC-13 | 24 VDC |
| Switching element | Opener (NC) |
| Material of the contacts, electrical | Silver |
Note

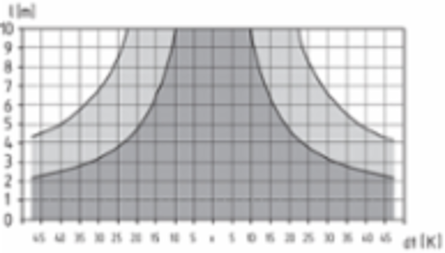

| Note (General) | Recommended cable lengths for pull-wire Emergency-Stop switches in relation to the range of ambient temperature. | As the thimbles are subject to deformation in case of wire pull, the wire should be pulled several times after fitting. After that, the wire must be re-tensioned using the eyebolt or the tensioner. | At 2 m ... 5 m distance intermediate wire supports are required, see accessories |
|---|

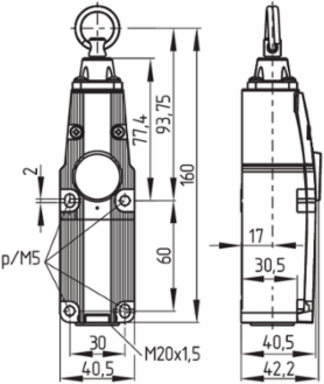

Mechanical data - Dimensions
| Width | 40.5 mm |
|---|---|
| Depth | 42.2 mm |
| Height | 160 mm |
|---|
Ambient conditions - Insulation values
| Rated insulation voltage U | 500 V |
|---|
| Rated impulse withstand voltage U | 6 kV |
|---|
Safety classification - Safety outputs
| B | 100,000 Operations |
|---|
General data - Features
| Number of normally closed (NC) | 2 |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Material of the housing cover | Glass-fibre, thermoplastic |
| Gross weight | 230 g |
| Enclosure material | Glass-fibre, thermoplastic |
|---|---|
| Length of the wire, maximum | 10 m |
Safety classification
| Standards | EN ISO 13849-1 |
|---|
| Mission time | 20 Year(s) |
|---|
Ambient conditions
| Degree of protection | IP67 |
|---|
| Ambient temperature | -25 ... +70 °C |
|---|
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|---|
| Cable section, maximum | 2.5 mm² |
| Cable section, minimum | 0.75 mm² |
|---|---|
| Note (Cable section) | All indications including the conductor ferrules. |
Mechanical data
| Mechanical life, minimum | 1,000,000 Operations |
|---|
Approvals - Standards
| Certificates | TÜV |
|---|
