Bryant

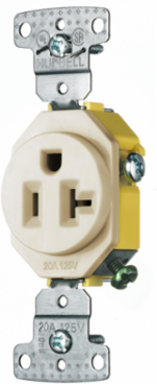

Bryant RR201LA Residential Grade 20A Straight Blade Receptacle, 125V, 2-Pole, Light Almond

Residential Grade 20A Straight Blade Receptacle, 125V, 2-Pole, Light Almond
  • MPN: RR201LA
  • UPC: 883778119262
  • PPN: HBL-RR201LA
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$13.05/ EA

Description

tradeSELECT® Straight Blade Residential Grade, Single, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Self Grounding

Features

  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base
  • Self Grounding

Specifications

Specifications

Country of Origin
China
Width
3.200 in
Amperage Rating
20 A
Color
Light Almond
NEMA Rating
5-20R
Number of Wires
3-Wire Grounding
Special Features
Self Grounding
Wattage
2500
Voltage Rating Description
125 VAC
Display Size
Standard Sized Product
Number Of Poles
2-Pole
Description - Invoice
RESI SGL RCPT, 20A 125V, SELF GRND, LA
Harmonization Code
8536698000
MSDS Flag
No
Material - Mounting Hardware
Screw Mounting
Material
Thermoplastic
BOX SIZE
2.300x8.000x4.600 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
883778119262
Case - Total Units
100 EA
Each - Pack Description
Each
Current / Amperage Rating20 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
ApplicationResidential Receptacles
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
ConnectivitySide Wired
Nema Rating5-20R
Number Of Wires3-Wire Grounding
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberRR201AL
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach

Certifications

EU RoHS Indicator
Yes
