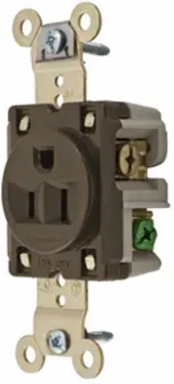

Hubbell Wiring Device-Kellems HBL5261 Industrial Grade Single Receptacle 15A 125V 2-Pole 3-Wire Brown
- MPN: HBL5261
- UPC: 783585013855
- PPN: HBL-HBL5261
- UNSPSC: 39121406
CAD
$47.26
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
Features
- One-piece brass integral ground strap
- Unique bypass contact design
- Self Grounding
Documentation & Downloads
Specifications
Additional
| Amperage | 15 A |
|---|---|
| Horsepower Rating | 0.5 HP |
| Number of Wires | 3-Wire |
| Dielectric Voltage Withstanding | 2000 V |
| Length | 3.28 in |
| Height | 1.19 in |
| Material | Brass, Nylon, PBT, Zinc plated steel |
| Connectivity | Back and Side Wired |
| Compliance | UL Listed, CSA Certified, RoHS Compliant, NEMA WD-6 |
| Color | Brown |
| Voltage | 125 VAC |
|---|---|
| Number of Poles | 2-Pole |
| Operating Temperature | -40 C to 75 C |
| Dimensions | 3.28 in x 1.63 in x 1.19 in |
| Width | 1.63 in |
| Wire Size | #14 AWG to #10 AWG |
| Material - Mounting Hardware | Screw Mounting |
| NEMA Rating | 5-15R |
| Country of Origin | US |
