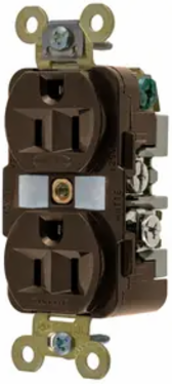

Hubbell Wiring Device-Kellems HBL5262 Industrial Grade Duplex Receptacle, 15A 125V, 2-Pole, Brown
- MPN: HBL5262
- UPC: 783585435107
- PPN: HBL-HBL5262
- UNSPSC: 39121406
CAD
$28.58
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.
Features
- Back wired ground terminal allows faster, easier installation
- One-piece brass integral ground strap
- Finder Groove Face
- Deep body design with circuit ID face
- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL5262 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Education Application Guide
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.65 in x 1.19 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Specification Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-15R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.65 in x 1.19 in
- Standard
- Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.25 lb.
- Connectivity
- Back and Side Wired
- Nema Rating
- 5-15R
- Number Of Wires
- 3-Wire
- Style
- Finder Groove Face
- Description - Invoice
- DUP RCPT, HD IND GRD, 15A125V, 5-15R,BR
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Sub Class Code
- A04A020
- Current Rating
- 15 A
- Series
- Extra Heavy Duty
- BOX SIZE
- 3.400x9.800x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585435107
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585435106
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Current / Amperage Rating15 A
Height1.19 in
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating15 A
ColorBrun
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesSelf Grounding
TypeStandard Duplex
Wattage1875 W
Voltage Rating Description125 V
Width1.65 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHBL5262CN
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.7 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.228 lb.
Lowest Level UOMEach
Pallet Height38.800 in
Pallet Weight1065.600 lb.
NAICS Code335931A102
