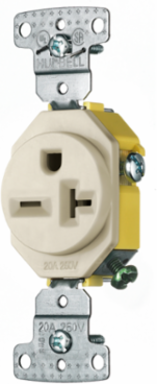

Bryant RR205LA Straight Blade Receptacle 20A 250V 2-Pole 3-Wire Grounding, Thermoplastic
- MPN: RR205LA
- UPC: 883778300653
- PPN: HBL-RR205LA
- UNSPSC: 39121406
CAD
$14.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
tradeSELECT® Straight Blade Residential Grade, Single, 20A 250V, 2-Pole 3-Wire Grounding, 6-20R, Self Grounding
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.500 in
- Amperage Rating
- 20 A
- Color
- Light Almond
- NEMA Rating
- 6-20R
- Number of Wires
- 3-Wire Grounding
- Special Features
- Self Grounding
- Wattage
- 5000
- Voltage Rating Description
- 250V kV
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Description - Invoice
- RESI SGL RCPT, 20A 250V, SELF GRND, LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 2.300x8.100x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778300653
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
ApplicationResidential Receptacles
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating250V kV
Wire Size#12 AWG to #10 AWG
ConnectivitySide Wired
Nema Rating6-20R
Number Of Wires3-Wire Grounding
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberRR205AL
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.250 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
