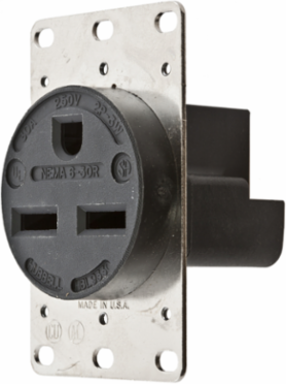

Hubbell Wiring Device-Kellems HBL9330 Industrial Grade Receptacle, 2-Pole 3-Wire, 30A 250V, Black
Hubbell Wiring Device-Kellems HBL9330 Industrial Grade Receptacle, 2-Pole 3-Wire, 30A 250V, Black
- MPN: HBL9330
- UPC: 783585015231
- PPN: HBL-HBL9330
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$38.09/ EA
Description
Straight Blade Devices, Receptacles, RTP, Industrial Grade, 2-Pole 3-Wire Grounding, 30A 250V, 6-30R, Black, Single Pack.
Features
- Sequenced contacts assure protection
- Catalog number, ratings and certifications molded in face
- One piece design power and ground contacts
- Standard
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.28 in x 2.25 in x 2.23 in
- Height
- 2.23 in
- Industry Standard(s)
- CSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Amperage Rating
- 30 A
- Color
- Noir
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Receptacle
- Wattage
- 7500 W
- Voltage Rating Description
- 250 V
- Width
- 2.25 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 9330
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic/Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.800 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585015230
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Each - Width2.500 in
Horsepower - Maximum2
Length3.28 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating6-30R
Number of Wires3-Wire Grounding
Size3.28 in x 2.25 in x 2.23 in
StandardCSA Certified;NEMA® WD-6 Compliant;UL Listed File E2186;WR Rating
Voltage Rating250 V
Wire Size#12 AWG to #4 AWG
Weight0.4 lb.
ConnectivityBack and Side Wired Screw Terminals
Nema Rating6-30R
Number Of Wires3-Wire Grounding
StyleGrounding
Description - InvoiceRCPT, 2P3W, 30A 250V, 6-30R, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA04A080
Current Rating30 A
SeriesExtra Heavy Duty
BOX SIZE5.700x8.500x6.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585015231
Case Weight4.400 lb.
Lowest Level UOMEach
Pallet Height45.600 in
Pallet Weight1113.600 lb.
Certifications
- EU RoHS Indicator
- Yes
