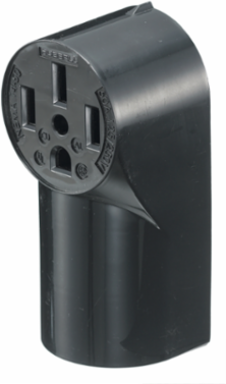

Bryant RR350 Straight Blade 50A Non-Grounding Receptacle, 3-Pole 3-Wire, 125/250V, Surface Mount
- MPN: RR350
- UPC: 883778100840
- PPN: HBL-RR350
- UNSPSC: 39121406
CAD
$24.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
tradeSELECT® Straight Blade Residential Grade, Single, 50A 125/250V, 3-Pole 3-Wire Non-Grounding, 10-50R, Surface Mount
Features
- Residential Grade
- Receptacles
- Single
- Surface Mount Receptacle
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 2.480 in
- Amperage Rating
- 30 A
- Color
- Black
- NEMA Rating
- 10-50R
- Number of Wires
- 3-Wire
- Special Features
- Surface Mount Receptacle
- Type
- Single Receptacle
- Wattage
- 7500
- Voltage Rating Description
- 125/250 V
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Description - Invoice
- RECPT, SB, 50A 125/250V, 3P3W, SURF, BK
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 10.040 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.800 in
- Pallet Weight
- 1545.950 lb.
Current / Amperage Rating50 A
Industry Standard(s)UL Listed
ApplicationResidential Range and Dryer Devices
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseSingle Phase
StandardUL Listed
Voltage Rating125/250 V
Wire Size#6 AWG
ConnectivityPressure Terminal Screws
Nema Rating10-50R
Number Of Wires3-Wire
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE5.900x11.400x5.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778100840
Case - Total Units40 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778100849
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
