Leviton

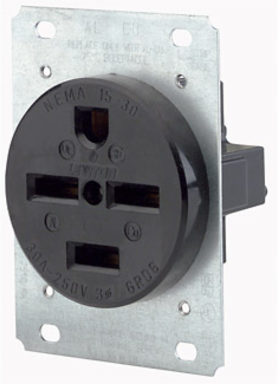

Leviton 8430 30 Amp, 250 Volt, Flush Mount Receptacle, Straight Blade, Industrial Grade

30 Amp, 250 Volt, Flush Mount Receptacle, Straight Blade, Industrial Grade
30 Amp, 250 Volt, Flush Mount Receptacle, Straight Blade, Industrial Grade
  • MPN: 8430
  • UPC: 078477843307
  • PPN: LEV-8430

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$74.02/ EA

Description

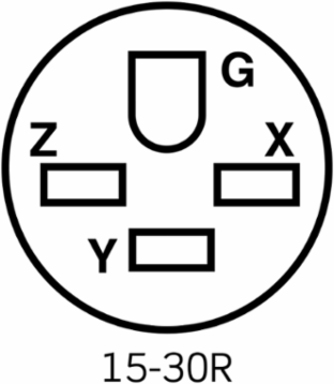

30 Amp, 250 Volt, NEMA 15-30R, 3P, 4W, Flush Mtg Receptacle, Straight Blade, Industrial Grade, Grounding, 3-Phase Y, Side Wired, Steel Strap, - Black

Features

  • Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.

Specifications

Standards and Certifications

ANSI
C-73
NEMA
WD-6
UL498
File E13399
CSA C22.2 No. 42File 152105
NOM057
Warranty10-Year Limited

Material Specifications

Body Material
Nylon
Face Material
Nylon
Strap Material
Galvanized Steel
ColorBlack
Line ContactsBrass Double-Wipe

Mechanical Specifications

Product ID
Ratings are permanently marked on device
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.Up to 4 AWG

Specifications

Country of Origin
Mexico
RoHS CompliantTrue

Product Features

Device Type
Power Device

Environmental Specifications

Operating Temperature
-40°C to 60°C

Electrical Specifications

Amperage
30 A
Dielectric Voltage
Withstands 2000V per UL498
Pole
3
Voltage
250 VAC
Current LimitingFull Rated Current
GroundingGrounding
Temperature RiseMax 30C after 50 cycles OL at 150 percent rated current
Wire4

AC Horsepower Ratings

At Rated Voltage
3 HP
