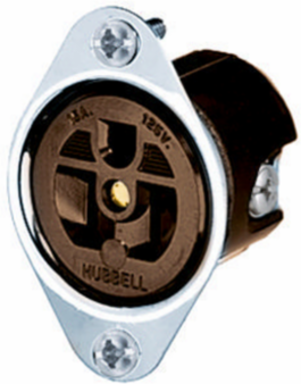

Hubbell Wiring Device-Kellems HBL5256 Commercial Grade Flanged Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Brown
- MPN: HBL5256
- UPC: 783585013046
- PPN: HBL-HBL5256
- UNSPSC: 39121406
CAD
$66.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Receptacles, Flanged, Commercial /Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, brown, Single Pack.
Features
- Stainless steel flange
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Width | 2.400 in |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186 |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-15R |
| Number of Wires | 3-Wire |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186 |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Engineering Drawing 1 Display Text | HBL5256 AutoCAD Drawing |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Description - Invoice | FLGD RCPT, 15A 125V, NEMA 5-15R |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A04A020 |
| Material - Mounting Hardware | Screw Mounting |
| Material | Stainless Steel |
| BOX SIZE | 3.400x12.300x2.700 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585013046 |
| Case - Total Units | 50 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585013045 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 15 A |
|---|---|
| Horsepower - Maximum | 0.50 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-0;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| Color | Brown |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Voltage Rating | 125 V |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.15 lb. |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Connectivity | Screw Terminals |
| Nema Rating | 5-15R |
| Number Of Wires | 3-Wire |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 5256 |
| Cord Range | 0.230"-0.720" (5.8-18.3) |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.35 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 5.387 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 47.000 in |
| Pallet Weight | 875.000 lb. |
| NAICS Code | 335931A102 |
