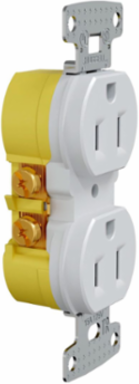

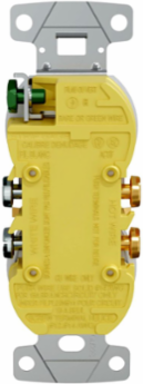

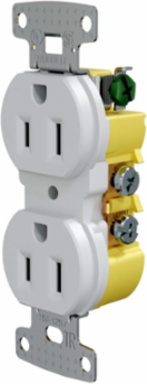

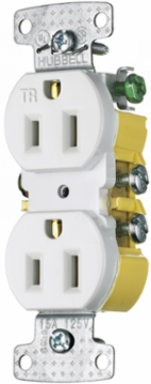

Bryant RR15SWTR Tamper Resistant Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, White
- MPN: RR15SWTR
- UPC: 883778301544
- PPN: HBL-RR15SWTR
- UNSPSC: 39121406
CAD
$3.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade Devices, Residential Grade, Receptacles, Tamper Resistant Duplex, 15A 125V, 2- Pole 3-Wire Grounding, 5-15R, Self Grounding, White
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Tamper Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.500 in
- Standards - RoHS Compliance Status
- CM
- Application
- Residential Receptacles
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #12 AWG
- General Literature Asset 1 Display Text
- General Literature - Tamper-Resistant and Weather Resistant Receptacles
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Description - Invoice
- RCPT, DUP, TR, 15A 125V, WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 2.300x8.000x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778301544
- Case - Total Units
- 200 EA
- Each - Pack Description
- Each
- Pallet Height
- 46.000 in
- Pallet Weight
- 1212.000 lb.
Current / Amperage Rating15 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
Amperage Rating15 A
ColorWhite
NEMA Rating5-15R
Number of Wires3-Wire Grounding
Special FeaturesTamper Resistant- Self Grounding
Wattage1875
Voltage Rating Description125 VAC
ConnectivityPush and Side Wire
Nema Rating5-15R
Number Of Wires3-Wire Grounding
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberRR15SW;RR15KWTR
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight29.320 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
