Bryant

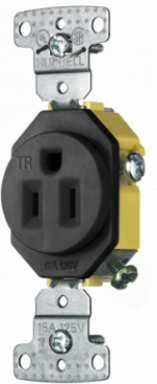

Bryant RR151BKTR Tamper Resistant Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Black

Tamper Resistant Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, Black
  • MPN: RR151BKTR
  • UPC: 883778301889
  • PPN: HBL-RR151BKTR
  • UNSPSC: 39121406

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$6.35/ EA

Description

TradeSelect, Straight Blade, Single Receptacle, Tamper Resistant, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Black

Features

  • Smooth indented face appearance
  • Multiple-drive Slot/Phillips/Robertson head screws
  • Tough thermoplastic ultrasonically welded cover and base
  • Tamper Resistant- Self Grounding

Specifications

Specifications

Country of Origin
China
Width
1.630 in
Amperage Rating
15 A
Color
Black
NEMA Rating
5-15R
Number of Wires
3-Wire Grounding
Special Features
Tamper Resistant- Self Grounding
Wattage
1875
Voltage Rating Description
125 VAC
Connectivity
Side Wired
Nema Rating
5-15R
Number Of Wires
3-Wire Grounding
Freight Class Code
06168002
Image Actual Or Representative
A
Material - Mounting Hardware
Screw Mounting
Material
Thermoplastic
BOX SIZE
2.300x8.000x4.400 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
883778301889
Case Weight
12.700 lb.
Lowest Level UOM
Each
Pallet Height
42.500 in
Pallet Weight
1143.000 lb.
Current / Amperage Rating15 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
ApplicationResidential Receptacles
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating125 VAC
Wire Size#14 AWG to #12 AWG
General Literature Asset 1 Display TextGeneral Literature - Tamper-Resistant and Weather Resistant Receptacles
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 15A 125V,TR, BK
Harmonization Code8536698000
MSDS FlagNo
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778301888
Pallet Length48.000 in
Pallet Width40.000 in

Certifications

EU RoHS Indicator
Yes
