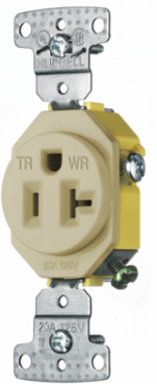

Bryant RR201IWRTR Straight Blade Single Receptacle 20A 125V Weather & Tamper Resistant Ivory
- MPN: RR201IWRTR
- UPC: 883778302961
- PPN: HBL-RR201IWRTR
- UNSPSC: 39121406
CAD
$11.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade, Single Receptacle, Weather and Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Ivory
Features
- Tamper-resistant shutter and weather-resistance complies with national eletrical code requirements
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic cover and base
- Weather and Tamper Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.600 in
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-1;Environmental - Operating temperature - -20°C to 60°C, without impact;Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA C22.2, No. 41
- Application
- Residential Receptacles
- Environmental Conditions
- Weather Resistant
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- Certified to CSA, C22.2, No. 41 File No. 23253;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2185
- Wattage
- 2500
- Voltage Rating Description
- 125 VAC
- Connectivity
- Side Wired
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire Grounding
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 2.300x8.000x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 883778302961
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
Current / Amperage Rating20 A
Industry Standard(s)Certified to CSA, C22.2, No. 41 File No. 23253;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2185
Amperage Rating20 A
ColorIvory
NEMA Rating5-20R
Number of Wires3-Wire Grounding
Special FeaturesWeather and Tamper Resistant- Self Grounding
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
General Literature Asset 1 Display TextResidential Catalog
Display SizeStandard Sized Product
Number Of Poles2-Pole
Description - InvoiceRESI SGL RCPT, 20A 125V,WR,TR, IV
Harmonization Code8536698000
MSDS FlagNo
Current Rating20 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.600 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
