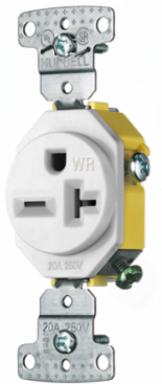

Bryant RR205WWR Weather Resistant 20A 250V Single Receptacle, 2-Pole 3-Wire, NEMA 6-20R
- MPN: RR205WWR
- UPC: 883778302824
- PPN: HBL-RR205WWR
- UNSPSC: 39121406
CAD
$16.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TradeSelect, Straight Blade Devices, Residential Grade, Weather Resistant Receptacles, Single, 20A 250V, 2- Pole 3-Wire Grounding, 6-20R, Self Grounding, White
Features
- Smooth indented face appearance
- Multiple-drive Slot/Phillips/Robertson head screws
- Tough thermoplastic ultrasonically welded cover and base
- Weather Resistant- Self Grounding
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Width
- 1.650 in
- Amperage Rating
- 20 A
- Color
- White
- NEMA Rating
- 6-20R
- Number of Wires
- 3-Wire Grounding
- Special Features
- Weather Resistant- Self Grounding
- Wattage
- 5000
- Voltage Rating Description
- 250V kV
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Description - Invoice
- RESI SGL RCPT, 20A 250V,WR, WH
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.1 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.349 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 43.000 in
- Pallet Weight
- 1102.500 lb.
Current / Amperage Rating20 A
PerformanceEnvironmental - Operating temperature - -20°C to 60°C;Mechanical - Terminal - Terminal screws accepts up to #12 AWG, Push wire designed for #14 AWG solid copper wire only
ApplicationResidential Receptacles
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Voltage Rating250V kV
Wire Size#12 AWG to #10 AWG
ConnectivitySide Wired
Nema Rating6-20R
Number Of Wires3-Wire Grounding
Freight Class Code06168002
Image Actual Or RepresentativeA
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE2.300x8.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack883778302824
Case - Total Units100 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70883778302823
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
