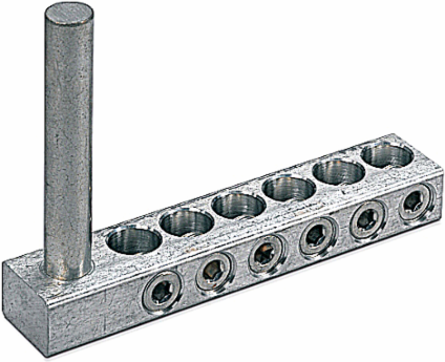

Blackburn ABP 640 Aluminum Overhead Transformer Eyebolt Connector, 5-3/4 Inch, Stud Size 1/2 X 4, 6 Conductors
- MPN: ABP 640
- UPC: 783786686483
- PPN: T-B-ABP 640
CAD
$167.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 5-3/4 inch, stud size 1/2 X 4, cable range 6-250, outlets 6.
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Made from high strength Aluminum alloy to maintain constant bolting pressure on conductors. Screws designed for optimum electrical connection and maximum conductor-contact pressure. Dual rated for use with aluminum and copper conductors. Designed with factory mounted 90 degree angle copper studs for installation in pole-type transformers with secondary eyebolt connections.
- Standard
- ANSI C119.4
- Connection
- Mechanical/Screw
- Number Of Conductors
- 6
- Finish
- Bare
- Insulation
- None
- Environmental Conditions
- All Seasons / Conditions
IGCC4543 Wire connectors
TypeAluminum Overhead Transformer Eyebolt Multi-Tap Set-Screw Connector
ApplicationDesigned with factory-mounted 90 Degree angle copper studs for installation in pole-type transformers with secondary eyebolt connections.
Size5-3/4 inch long, Stud Size 1/2 X 4
Wire Size#6-250
MaterialAluminum
Voltage RatingNone Since Uninsulated
Temperature Ratingup to 90 Degrees C.
Packaging
- Outer Quantity
- 25
- Weight Uom
- 71.5 lbs. per 100
Outer Dimensions (inches)13.5x8.5x8.25
