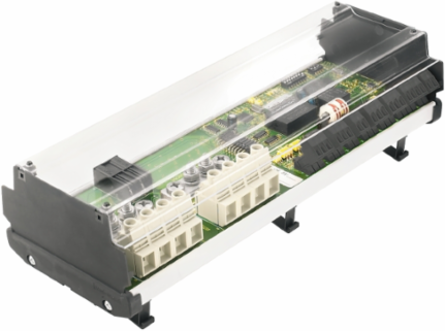

Weidmuller 1238120000 TRANSCLINIC 8I+
- MPN: 1238120000
- PPN: WDM-1238120000
CAD
$1409.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Photovoltaics
Documentation & Downloads
Specifications
Approvals
| Approvals | CE |
|---|
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 295 mm |
|---|---|
| Width | 109.5 mm |
| Height | 92.2 mm |
| Net weight | 1,112 g |
| Length (inches) | 11.614 inch |
|---|---|
| Width (inches) | 4.311 inch |
| Height (inches) | 3.63 inch |
Classifications
| ETIM 6.0 | EC002928 |
|---|---|
| eClass 9.0 | 22-57-92-03 |
| eClass 10.0 | 22-57-04-90 |
| ETIM 7.0 | EC002928 |
|---|---|
| eClass 9.1 | 22-57-04-90 |
Technical Data
| Communication | MODBUS RS485 RTU |
|---|---|
| Height | ≤ 3000 m |
| Maximum number of strings | 8 |
| Number of digital inputs | 2 |
| Rated voltage (text) | 1000 V DC |
| String-voltage measurement error | ± 10 V from 100 V DC to 1000 V DC |
| current measuring | Low-current measurement resistors (shunt) |
| Digital inputs | 0,5 V low, 15 ... 24 V high |
|---|---|
| Maximum current per string | 30 A DC (-25…+70 °C) |
| Measurement range | 3…30 A DC |
| Power consumption | < 1500 mW |
| String-current measurement error | ± 360 mA from 3 A DC to 30 A DC |
| Voltage supply | 19 - 36 V DC |
Temperatures
| Continuous operating temp., min. | -20 °C |
|---|
| Continuous operating temp., max. | 70 °C |
|---|
