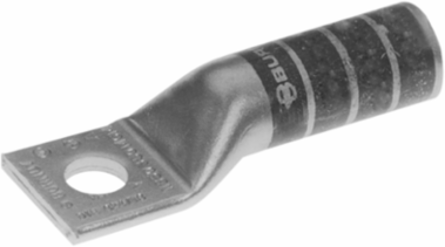

Burndy YAAKIT2 Transformer Lug Kit 2/0 AWG-300 kcmil, Aluminum, 35 kV, 1.38 Inch Pad Width
- MPN: YAAKIT2
- UPC: 781810033487
- PPN: BUR-534192
CAD
$1047.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transformer Lug Kit, 2/0 AWG-300 kcmil
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 1.53 in |
|---|---|
| Dimension - Hole Size inch | 0.28 in |
| Dimension - L Length Overall mm | 99 mm |
| Dimension - N inch | 0.63 in |
| Dimension - Pad Width inch | 1.38 in |
| Physical Attribute - Tongue Angle | Straight |
| Dimension - D inch | 1.37 in |
|---|---|
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 3.90 in |
| Dimension - Outside Diameter inch | 1.01 in |
| Dimension - Z inch | 0.74 in |
Certifications and Compliance
| Certification - CSA Approved | No |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL467 |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL467 |
| UL Listed | No |
Conductor Related
| Conductor - AL Str Size | 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil |
|---|---|
| Conductor - Copper Str Size | 2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil |
| Conductor - AL Str Size Range | 2/0 AWG-300 kcmil |
|---|---|
| Conductor - Copper Str Size Range | 2/0 AWG-300 kcmil |
General
| Color Code | Blue |
|---|---|
| Die Index | 470 |
| Item Type | 4D |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Temperature Rating | 194 |
| UPC 12 Digit | 7818100334877 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Type | Standard |
| Material | Aluminum |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| UPC | 781810033487 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Package Contents | (8) YA30-7;(8) 1/2-20 x 3/4 in, (8) 1/4-20x2 in HEB Bolt;(16) 1/4-20 HN Nut;Captive to Nut |
|---|
