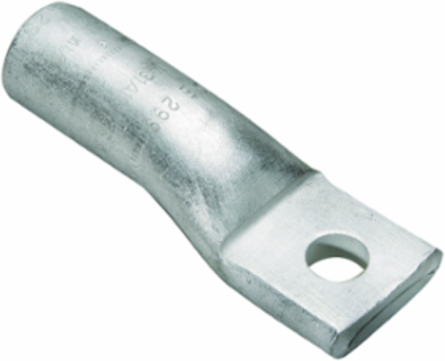

Burndy YA10ATN Aluminum Tubing Terminal, 1 Hole, #10 Stud Size, 1.22 Inch Length, 35 kV Rating
- MPN: YA10ATN
- UPC: 781810742259
- PPN: BUR-532175
CAD
$65.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
UNINSULATED ALUMINUM COMPRESSION TERMINAL, 1-HOLE DESIGNUL Listed 90° C600 Volts to 35 KV.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1/2 in
- Dimension - Bolt Hole Size inch
- 0.20 in
- Dimension - Hole Size inch
- 0.20 in
- Dimension - L Length Overall mm
- 31 mm
- Dimension - N inch
- 0.20 in
- Dimension - Pad Width inch
- 0.41 in
- Dimension - Stud Size inch
- #10
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.50 in
Dimension - D inch0.50 in
Dimension - Hole Size mm5 mm
Dimension - Length Overall inch1.22 in
Dimension - Outside Diameter inch0.21 in
Dimension - Strip Length inch5/8
Dimension - Z inch0.30 in
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - AL Str Size
- 10 AWG
- Conductor - Copper Str Size
- 10 Str.
Conductor - AL Str Size Range10 AWG
Conductor - Copper Str Size Range10 Str.
General
- Connector Type
- Terminal
- Item Type
- 3C
- Physical Attribute - Number of Holes
- 1
- Plated
- Y
- Temperature Rating
- 194
- UPC
- 781810742259
Feature - Barrel TypeStandard
MaterialAluminum
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC 12 Digit7818107422599
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
