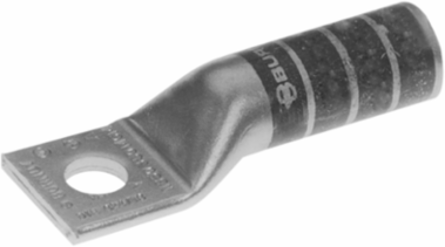

Burndy YAAKIT1 Transformer Lug Kit, 6-2 AWG, 2/0 AWG-300 kcmil, Aluminum, 35 kV Rating
- MPN: YAAKIT1
- UPC: 781810033470
- PPN: BUR-534191
CAD
$831.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Transformer Lug Kit, #6-2 AWG, 2/0 AWG-300 kcmil
Documentation & Downloads
Specifications
Dimensions
- Physical Attribute - Tongue Angle
- Straight
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL467
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL467
UL ListedNo
Conductor Related
- Conductor - AL Str Size
- 6 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 AWG;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;266 kcmil;300 kcmil
- Conductor - Copper Str Size
- 6 AWG;5 AWG;4 AWG;3 AWG;2 AWG;1 AWG;1/0 ;2/0 AWG;3/0 AWG;4/0 AWG;250 kcmil;300 kcmil
Conductor - AL Str Size Range6 AWG-300 kcmil
Conductor - Copper Str Size Range6 AWG-300 kcmil
General
- Connector Type
- Terminal
- Item Type
- 4D
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- UPC
- 781810033470
Feature - Barrel TypeStandard
MaterialAluminum
PlatedY
Temperature Rating194
UPC 12 Digit7818100334700
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Package Contents
- (8) YA2C-A5, (4) YA30-A7;(8) 1/4-20 x 3/4 in Bolts;(8) 1/4-20 in HN Nut;Captive to Nut
