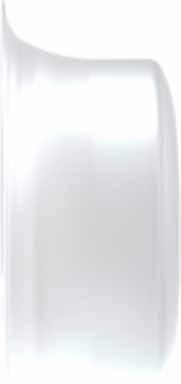

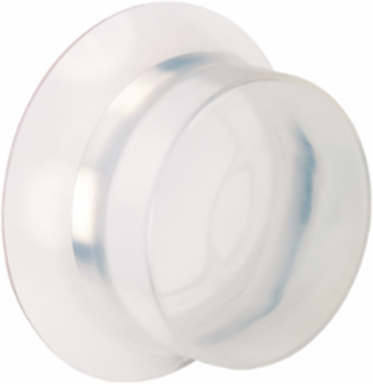

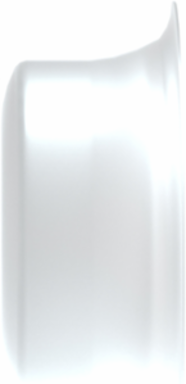

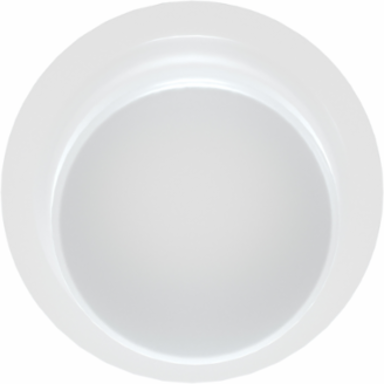

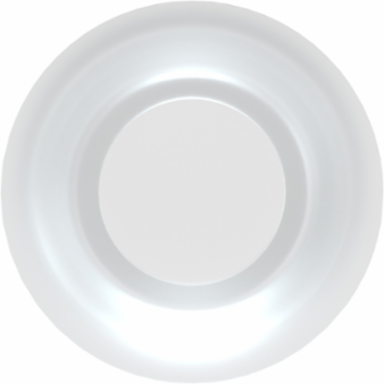

Schneider Electric ZBP0A Transparent Silicone Boot for 22mm Harmony XB4 Push Buttons, Set of 10
- MPN: ZBP0A
- PPN: SCH-ZBP0A
CAD
$10.94
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony ZB, clear silicone boot for food industry applications. It is compatible with Harmony XB4 and XB5 projecting and push-push circular heads. This silicone boot is ideal to complement a control unit and adapt it to stright hygiene and cleaning requirement of stringent industries. It is transparent, allowing users to see colors and marking of the underlying button and is perfectly formed-fit with Harmony push-buttons. It is chemical resistant, making it ideal for operation in harsh environments requiring frequent chemical cleaning. The silicon boot prevents growth of bacteria in joints and gaps: ideal for high hygiene environments like food and beverage industry.
Features
- Custom-engineered to serve as an impenetrable physical shield, this product functions as a flexible, form-fitted transparent protective boot. It slips directly over individual panel buttons to provide a continuous surface barrier that prevents liquids, grease, and grit from penetrating the gaps around the moving actuator, ensuring unhindered mechanical operation.
- Belonging to Schneider Electric’s world-class Harmony XB4 (metal bezel) and Harmony XB5 (plastic bezel) 22 mm families, this single round boot features a universal mounting footprint. It is engineered to conform perfectly to standard circular flush or projecting push-buttons (as well as select push-push operators), integrating into your existing control station layouts without requiring a different button profile.
- The high-transparency design ensures that underlying colors, text, and custom pilot markers remain completely unobstructed and easy to read from a distance. Plant operators maintain full visual confirmation of critical control functions, eliminating entry errors while adding an extra layer of mechanical defense.
- Designed for rapid tool-free deployment, the round protective shield slips directly over the control unit head for quick and easy assembly and disassembly. This efficient form-fit engineering minimizes maintenance cycle times and keeps your production lines running smoothly during routine safety retrofits or worn-component swap-outs.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB4 || Harmony XB5
- Product Or Component Type
- transparent boot
- Quantity Per Set
- set of 10
- Accessory / Separate Part Type
- single boot
Accessory / Separate Part Categoryprotection accessories
Product Specific Applicationfor food industry applications
Shaperound
Accessory / Separate Part Destinationflush push-button || projecting push-button
Complementary
- Net Weight
- 0.002 kg
Colourtransparent
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1808008EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI1808008EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Contractual warranty
- Warranty
- 18 months
