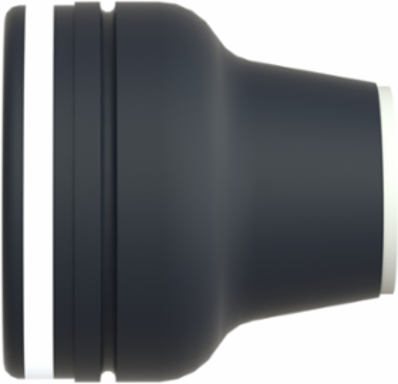

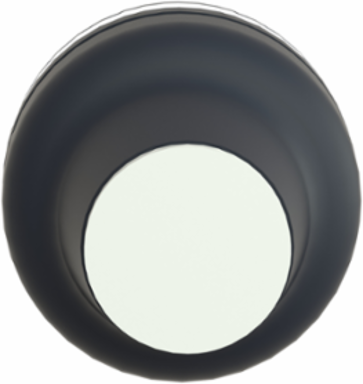

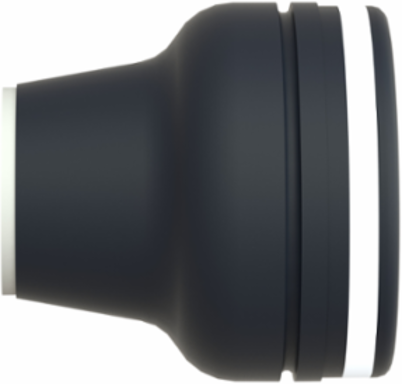

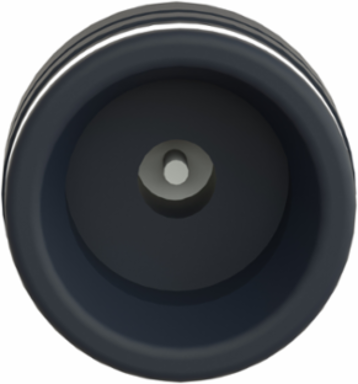

Schneider Electric XACB9211 Harmony XAC Push Button Head, 16 mm Travel, IP65, White Booted
- MPN: XACB9211
- PPN: SCH-XACB9211
CAD
$11.62
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This white booted operator is a separate component for double insulated, XACB pendant control station. Its maximum operating travel is equal to 16mm. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65.
Features
- Part of the HarmonyTM XAC heavy-duty pendant station family, this product number is a modular push button operator head assembly.
- This operator provides a crisp mechanical throw with a 16 mm (0.63-inch) linear travel depth. This generous physical displacement delivers positive manual feedback through thick protective rigging gloves, ensuring overhead hoist operators can instinctively feel exactly when the button has been fully depressed.
- Built to handle demanding outdoor infrastructure setups, this component is structurally rated to operate smoothly across an ambient temperature window spanning from -25 C up to 70 C (-13 F to 158 F). The chemical composition of the specialized boot ensures it retains its elasticity and will not brittle or crack under freezing conditions, protecting high-exposure shipyard cranes or forestry winches.

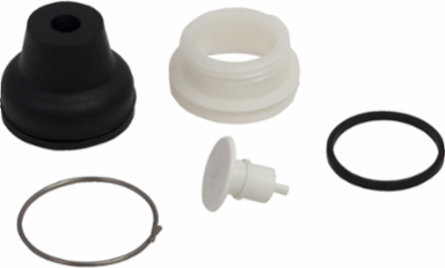

- Weighing a mere 0.005 kg (0.01 lb), this compact sub-assembly is shipped as a loose, consolidated component kit. Its minimal physical footprint allows industrial maintenance teams and field contractors to carry multiple backup button packs in standard tool pouches, enabling rapid field replacements of worn or torn pendant boots directly on the job site without carrying heavy bulk.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Czechia, France, United States |
|---|
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Certificate Agency | IEC 60947-5-1, CSA C22.2 No 14 |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.0043811189 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.0240159285 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Electrical Shock Protection Class | class II conforming to IEC 61140 |
| Operating Travel | 16 mm |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | Harmony XAC |
| Sale Per Indivisible Quantity | 10 |
| Software Version | EIME v5.9.4 |
| Total Lifecycle Carbon Footprint | 0 kg CO2 eq. |
| Pep Code | ENVPEP0709005EN |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Energy Model - End Of Life [C1-c4] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Cap/Operator Or Lens Colour | white |
| Package Weight(Lbs) | 6.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase [A4] | 0.0010146465, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0000241814, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Component Name | XACB |
| Marking | unmarked |
| Operator Additional Information | booted |
| Product Or Component Type | head for push-button |
| Returnability | Yes |
| Shock Resistance | 100 gn IEC 60068-2-27 |
| Sustainable Packaging | No |
| Vibration Resistance | 15 gn (f= 10-500 Hz) conforming to IEC 60068-2-6 |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | XAC is a complete ready to use pendant station for control of single-speed motors in Industrial application which has 10 years of product lifetime with 15% of use rate.& 10Product Standards- EN/IEC 60947-5-1, EN/IEC 60204-32 |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Czech Republic |
| Energy Model - Use [B6] | Ecobilan identifier / ELCD-0370 / CODDE-0086 / ECO-168- |
| Recyclability Potential In % | 32 |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908180 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -25-70 °C, -25-70 °C |
|---|---|
| Product Compatibility | XESD1191, XESD1291, XESD1181, XESD1281 |
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP0709005EN |
| Ip Degree Of Protection | IP65 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2022-11-01 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 0.0294358753 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP0709005EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | head for push-button |
|---|
| Range Of Product | Harmony XAC |
|---|
ETIM
| ETIM 8 | EC000221 |
|---|
| ETIM 9 | EC000221 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
